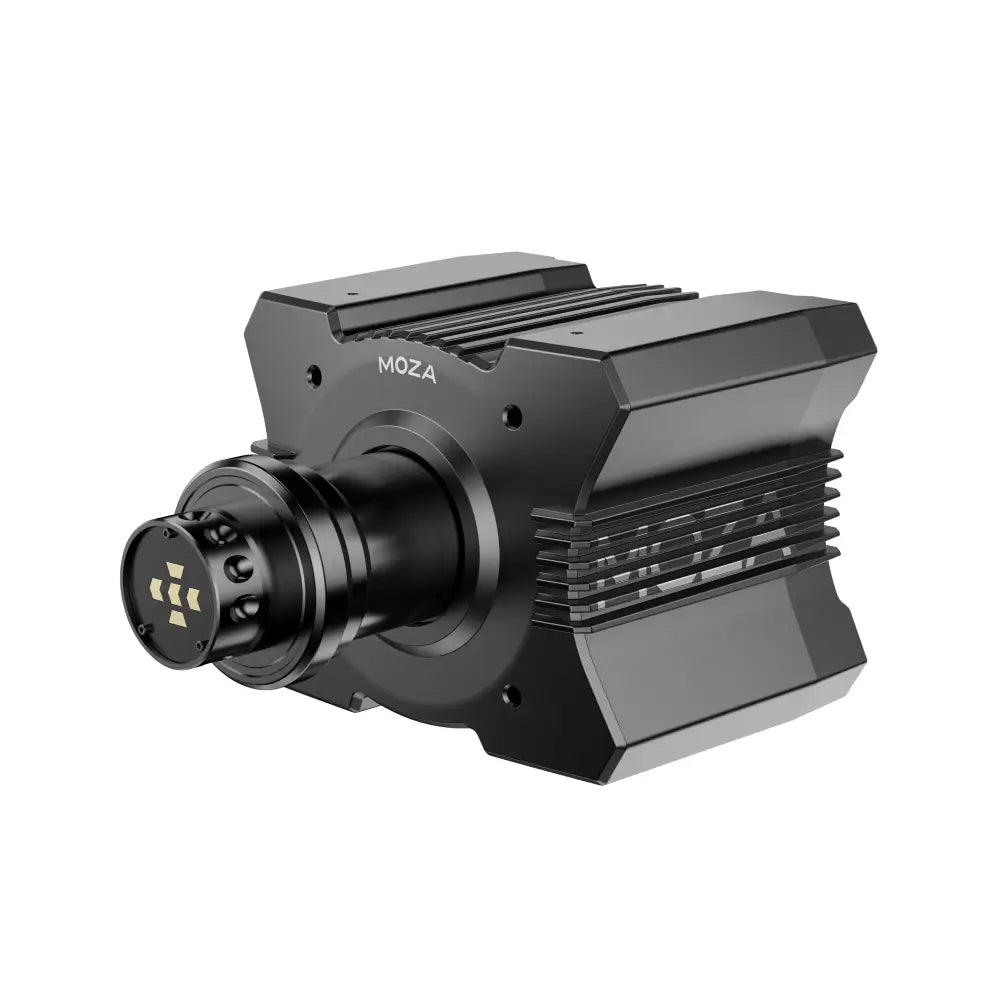

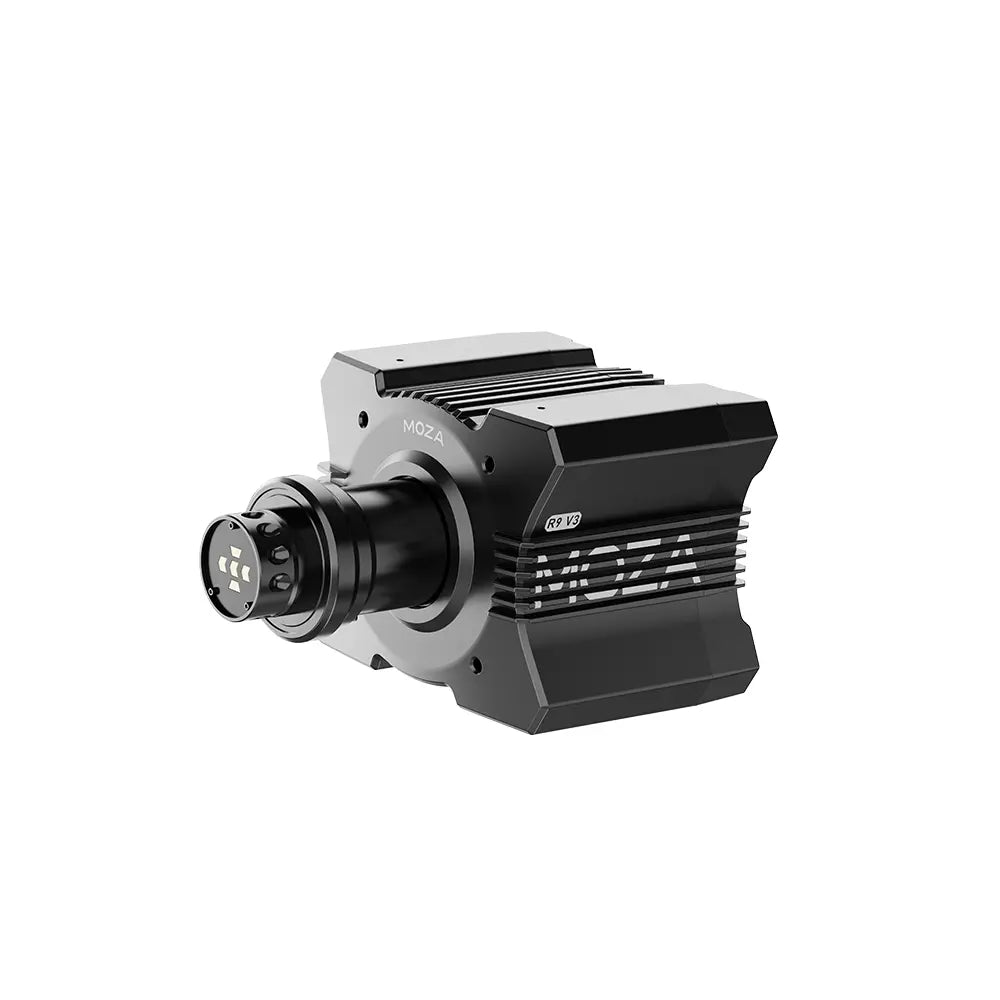

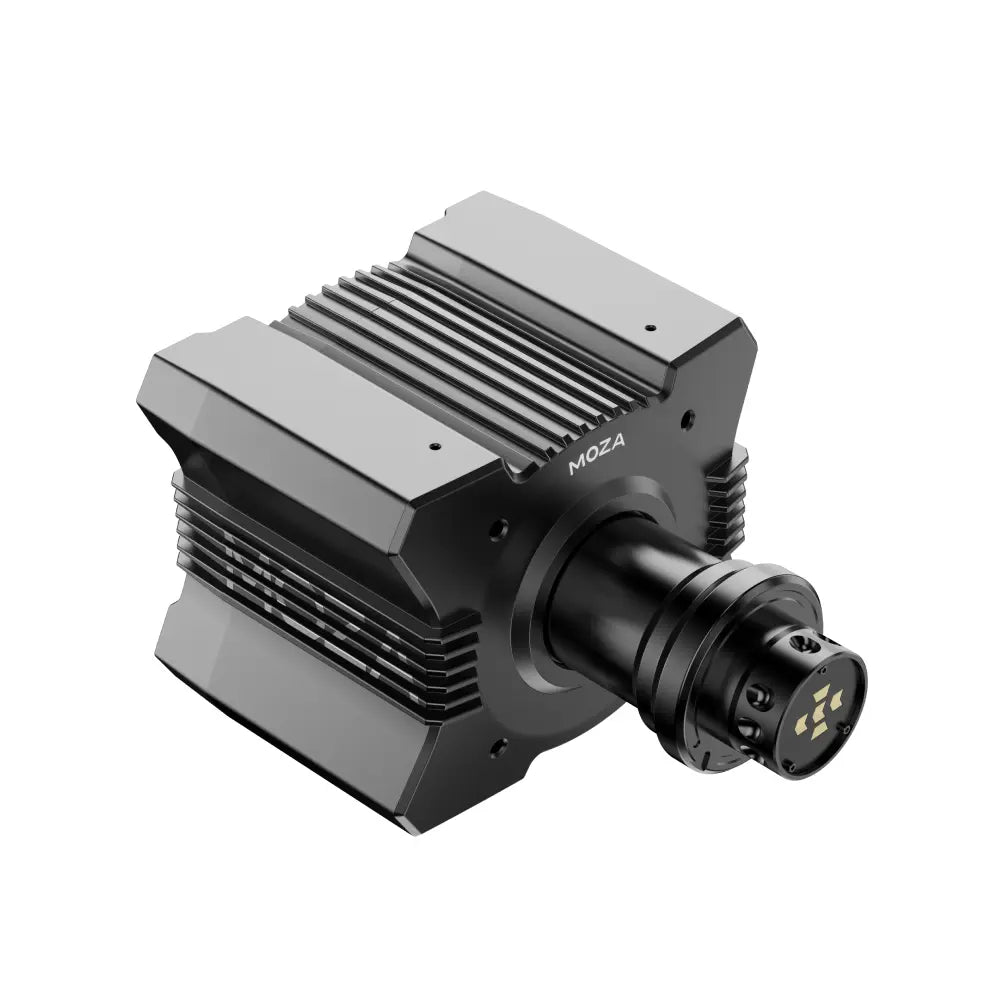

MOZA R9 V3 9Nm direct drive wheelbase

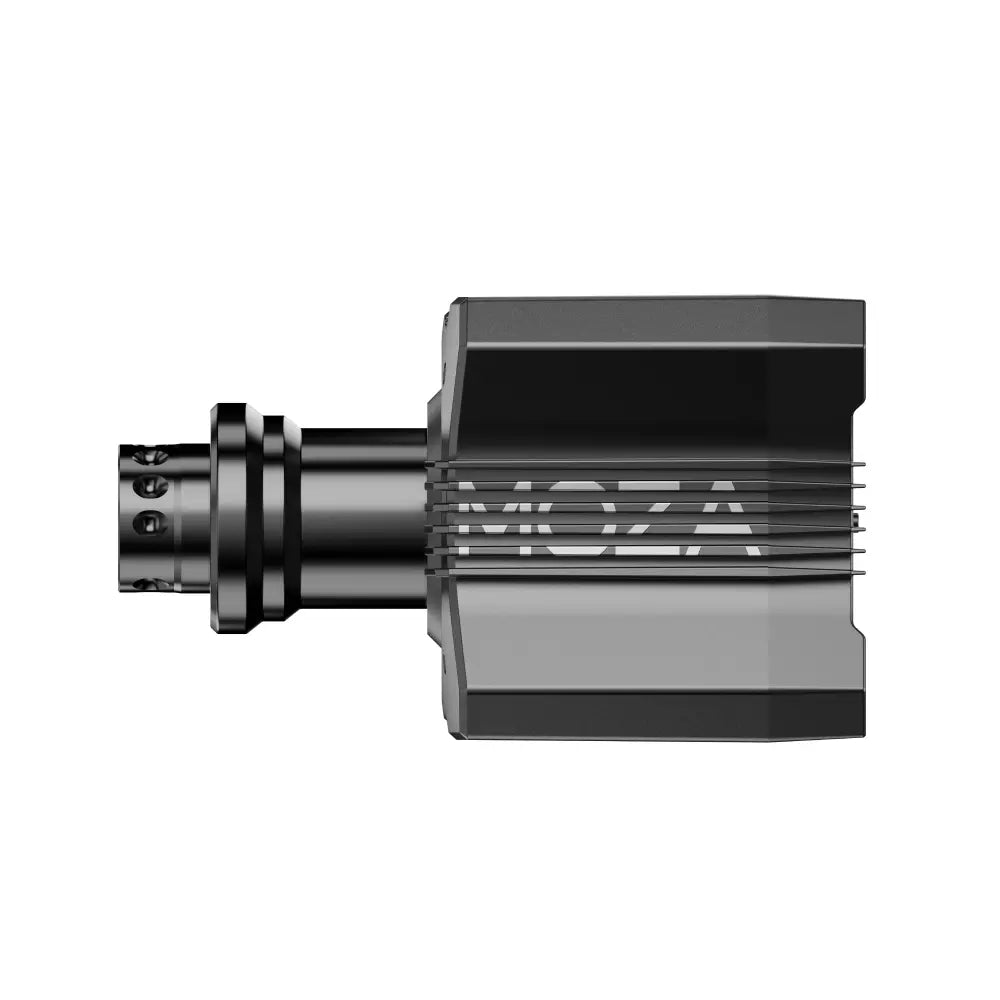

MOZA R9 V3 wheelbase side view

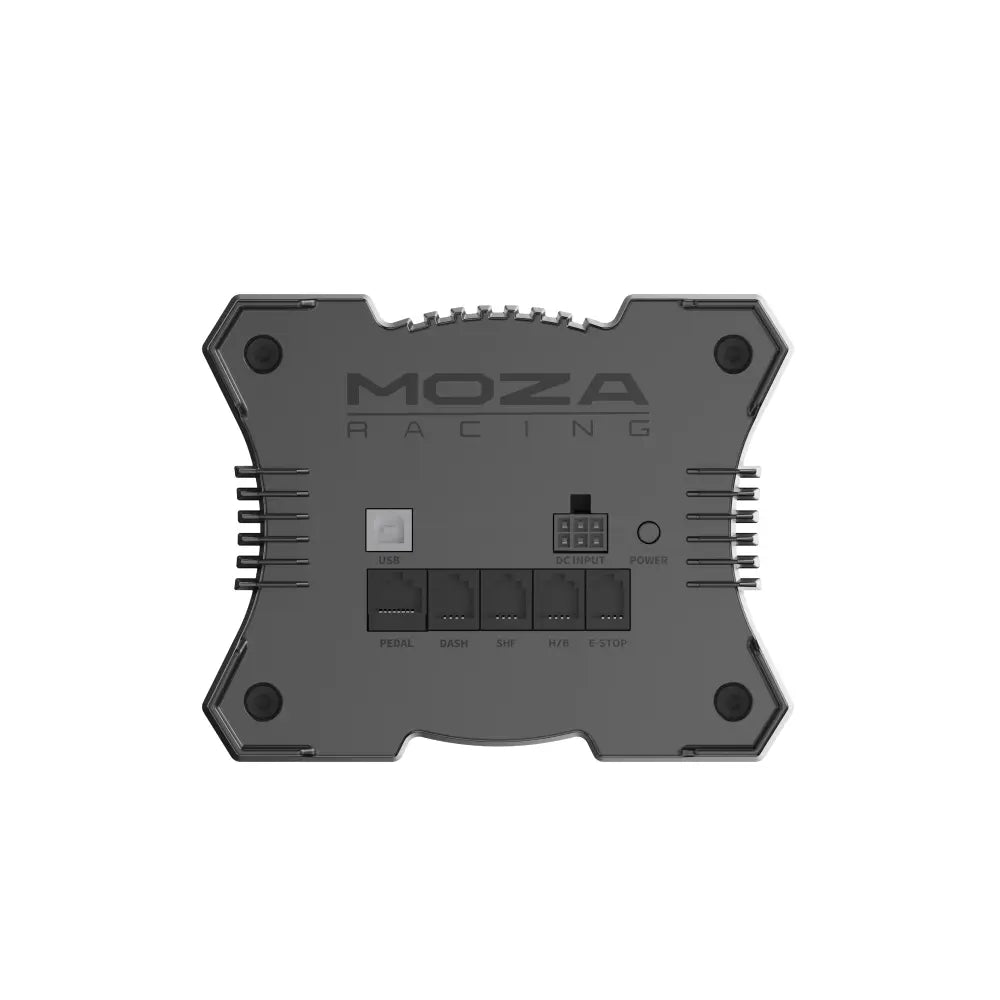

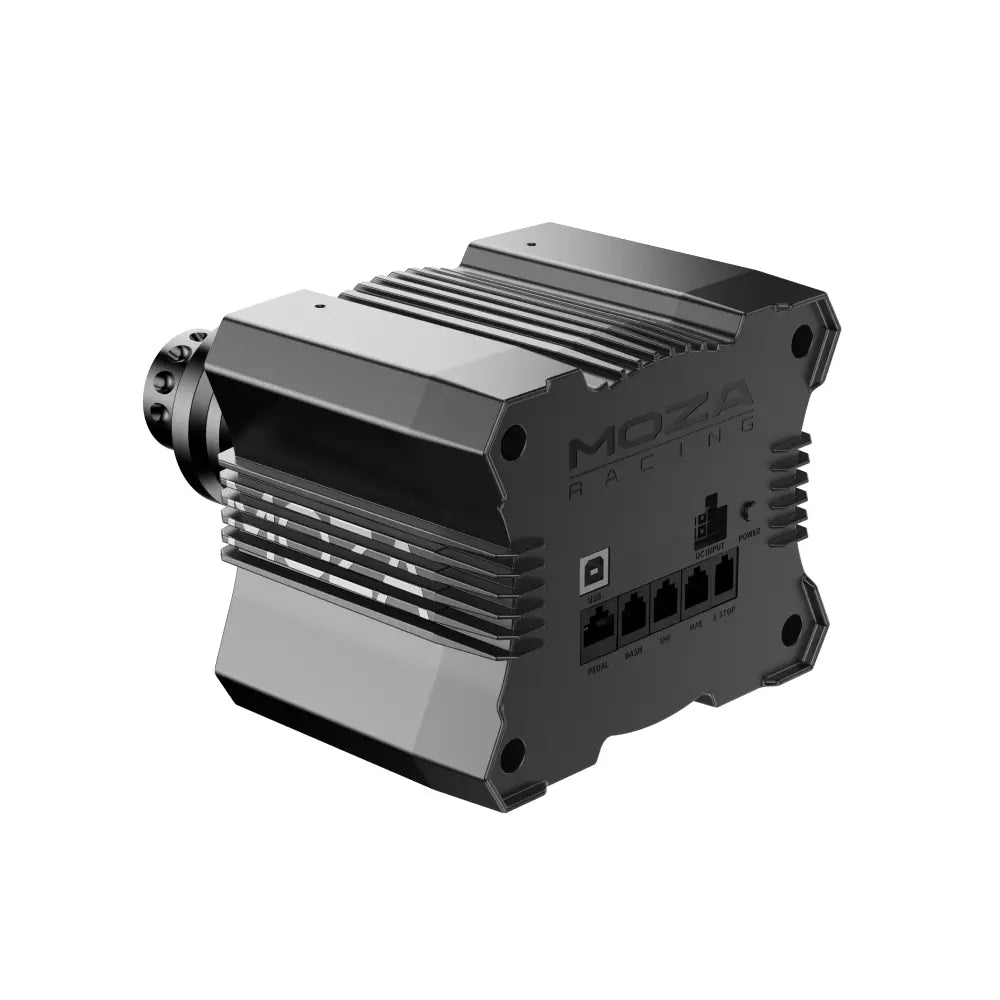

MOZA R9 V3 wheelbase ports
MOZA R9 V3 wheelbase with quick release
MOZA R9 V3 wheelbase mounting holes
MOZA R9 V3 wheelbase in a sim racing setup

MOZA R9 V3 Direct Drive Wheel Base

$499.00 $379.00

The MOZA R9 V3 is a 9 Nm direct-drive sim racing wheelbase for PC. It has a 21-bit magnetic encoder, a 280 MHz processor, NexGen 4.0 force feedback and active cooling...

People are viewing this right now

american expressapple paygoogle payjcbmasterpaypalshopify paysofortvisa
Description

The MOZA R9 V3 is a 9 Nm direct-drive sim racing wheelbase for PC. It has a 21-bit magnetic encoder, a 280 MHz processor, NexGen 4.0 force feedback and active cooling in a compact aluminum body. This is the wheelbase only: add a MOZA steering wheel and pedals. Canada Toyz sells it in CAD and ships from Markham, Ontario.

Key Features

  • 9 Nm peak torque (180 W) from a custom 18-slot, 16-pole servo motor.
  • 21-bit magnetic encoder: 2,097,152 steps per revolution.
  • NexGen 4.0 force feedback on a 280 MHz processor.
  • Intelligent temperature control with active cooling.
  • Slip ring rated for over 5 million revolutions.
  • 90 to 2700° rotation, 1000 Hz USB refresh.

What's in the Box

  • MOZA R9 V3 wheelbase
  • Power supply
  • USB cable
  • Toolkit
  • User manual and warranty card

Not included: a steering wheel, pedals or table clamp. The MOZA Table Clamp is sold separately.

Choosing a MOZA Wheelbase

Wheelbase Peak torque Encoder Price at Canada Toyz
MOZA R9 V3 (this page) 9 Nm 21-bit $419.00
MOZA R12 V2 12 Nm 21-bit $559.00
MOZA R16 Ultra 16 Nm 21-bit $729.00
MOZA R21 Ultra 21 Nm 21-bit $969.00

Who It's For

  • Best for: PC racers who want a mid-range direct-drive base for GT, rally and truck sims.
  • Want more torque: the MOZA R12 V2 (12 Nm).
  • Xbox: MOZA lists the R9 V3 as a PC wheelbase. For Xbox, MOZA pairs its licensed ESX wheel with the R3 Racing Bundle for Xbox & PC.

Technical Specifications

  • Drive: Direct drive servo, 18-slot / 16-pole
  • Peak torque: 9 Nm
  • Peak power: 180 W
  • Encoder: 21-bit magnetic
  • Processor: 280 MHz
  • Force feedback: NexGen 4.0
  • Rotation: 90–2700°
  • USB refresh: 1000 Hz
  • Power: 110–220 V AC to 36 V DC
  • Dimensions: 240 × 157 × 124 mm
  • Housing: Aviation-grade aluminum alloy, black
  • Ports: Power, DC input, pedals, E-stop, USB, dash, shifter, handbrake
  • Mounting: 4-hole bottom mount; table clamp and side mount optional

Compatibility

  • Games include: Assetto Corsa, iRacing, the F1 series, Forza Horizon, DiRT Rally, Euro Truck Simulator 2 and Assetto Corsa Rally.
  • Wheels: all MOZA steering wheels with the MOZA quick release.

MOZA R9 V3 FAQ

Does the R9 V3 include a wheel?

No. It is the wheelbase only.

Can I clamp it to a desk?

Yes, with the optional MOZA Table Clamp. It also fits most wheel stands and cockpits with its 4-hole bottom mount.

R9 V3 or R12 V2?

The R12 V2 has 12 Nm for stronger force feedback. The R9 V3 has 9 Nm and costs less. Both use a 21-bit encoder.

What does "Back order" mean on this page?

Back order means the wheelbase is not in our Markham warehouse at the moment. You can still place the order. It is queued and ships when the next supplier shipment reaches Markham, typically in 2 to 4 weeks. Lead time depends on supplier stock and transit.

Where does Canada Toyz ship from?

From Markham, Ontario, to addresses across Canada. Prices are in CAD, and there is no customs paperwork, duty or brokerage fee at delivery. Orders over $300 CAD ship free. See our shipping policy for details.

Is it covered by warranty in Canada?

Yes. It is covered by MOZA's manufacturer warranty, with local support from Canada Toyz in Markham. Contact us at info@canadatoyz.com or +1 289-818-8441.

Browse more wheels, wheelbases and pedals in our sim racing collection.
