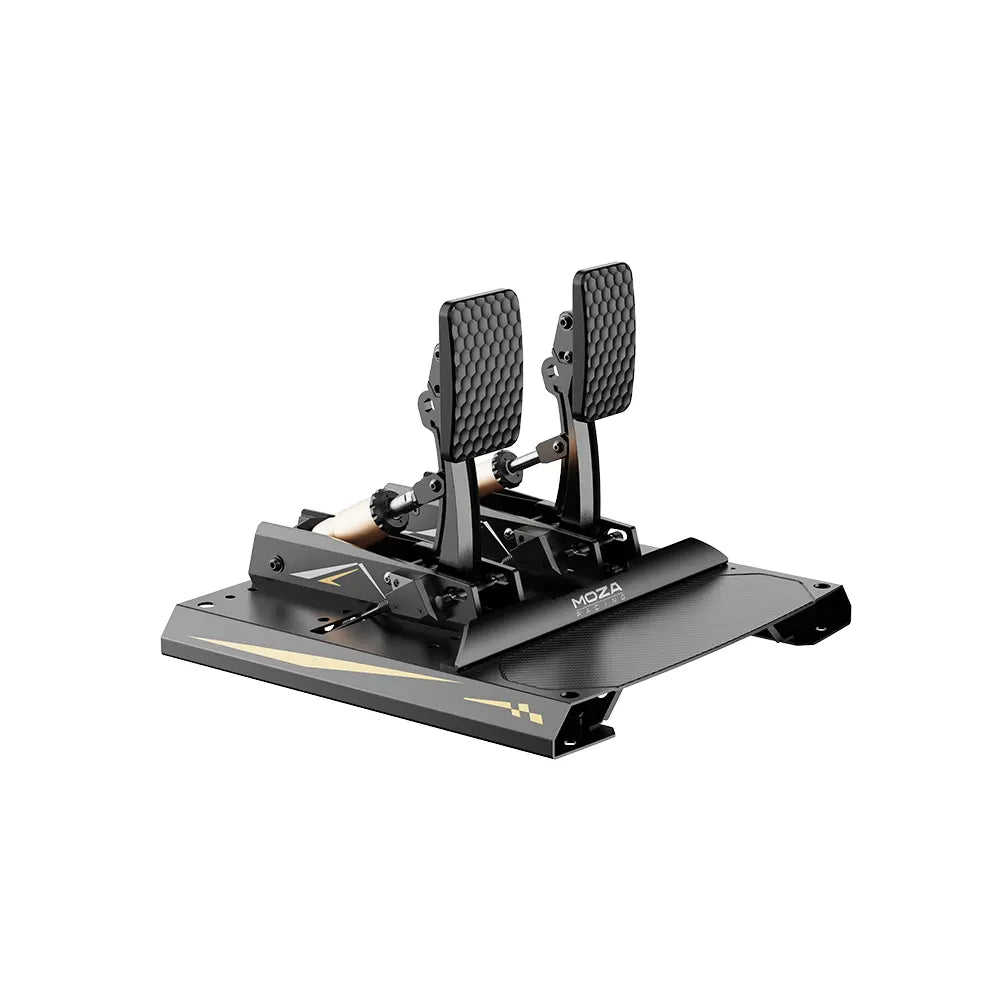

MOZA CRP2 Load Cell Pedals (Throttle+Brake)
The MOZA CRP2 Load Cell Pedals are MOZA's flagship throttle and brake set. The brake fuses a 200 kg load cell with a 15-bit angle sensor, the pedals are CNC-machined aerospace...
The MOZA CRP2 Load Cell Pedals are MOZA's flagship throttle and brake set. The brake fuses a 200 kg load cell with a 15-bit angle sensor, the pedals are CNC-machined aerospace aluminum on a steel base with a 3K carbon fibre heel plate, and travel, angle, face height and footrest are all adjustable. They connect straight to a PC by USB and work with other brands' wheelbases. Canada Toyz sells it in CAD and ships from Markham, Ontario.
Key Features
- 200 kg load cell brake fused with a 15-bit (32,768 PPR) angle sensor.
- 125 brake feel adjustments as standard, and over 1,700 with the optional Performance Kit.
- Adjustable travel: brake 15–20°, throttle 15–23°; pedal angle 0–15°; face height and footrest up to 30 mm.
- CNC-machined aerospace aluminum pedals, high-strength steel base, 3K twill carbon fibre heel plate, polished steel shafts with damping.
- Tested for over one million presses per pedal.
- USB direct to PC; tune curves, engagement point and live output in MOZA Pit House.
What's in the Box
- MOZA CRP2 Pedals (throttle + brake) × 1
- Tool kit
- Warranty card
Not included: a clutch. The optional CRP2 clutch adds a third pedal. An inverted mounting kit is also optional.
MOZA SRP2 vs CRP2
| SRP2 | CRP2 | |
|---|---|---|
| Price at Canada Toyz | $219.00 | $509.00 |
| Brake load cell | 100 kg | 200 kg |
| Heel plate | Steel base | 3K carbon fibre |
| Page | MOZA SRP2 | This page |
Who It's For
- Best for: serious sim racers who want a stiff, consistent load cell brake.
- Want active pedal effects: the MOZA mBooster Active Pedal Set pairs an active brake with the CRP2 throttle.
- Lower budget: the MOZA SRP2 has a 100 kg load cell.
Technical Specifications
- Pedals: Throttle and brake (clutch optional)
- Brake: 200 kg load cell + 15-bit angle sensor
- Brake feel: 125 adjustments standard; 1,764 with Performance Kit
- Travel: Brake 15–20°, throttle 15–23° (clutch 15–25°)
- Adjustments: Angle 0–15°, face height and footrest up to 30 mm
- Throttle spring: 2 options, preload adjustable
- Materials: CNC aluminum pedals, steel base, 3K carbon heel plate
- Durability: Over 1 million presses per pedal
- Connection: USB to PC
- Software: MOZA Pit House
Compatibility
- Platforms: PC and Xbox, per MOZA.
- Other brands: MOZA says they work with other brands' wheelbases and shifters.
MOZA CRP2 Pedals FAQ
Does the CRP2 include a clutch?
No. It is a throttle and brake set; the CRP2 clutch is an optional add-on.
Is 200 kg too much brake force?
The load cell is rated to 200 kg, but you set the force you need in MOZA Pit House. Many drivers use far less.
Do the CRP2 pedals work with a Fanatec or Simucube wheelbase?
Yes. They plug into your PC by USB, and MOZA says they work with other brands' wheelbases and shifters.
Can I mount them upside down?
Yes, with MOZA's optional inverted mounting kit.
What does "Back order" mean on this page?
Back order means the pedal set is not in our Markham warehouse at the moment. You can still place the order. It is queued and ships when the next supplier shipment reaches Markham, typically in 2 to 4 weeks. Lead time depends on supplier stock and transit.
Where does Canada Toyz ship from?
From Markham, Ontario, to addresses across Canada. Prices are in CAD, and there is no customs paperwork, duty or brokerage fee at delivery. Orders over $300 CAD ship free. See our shipping policy for details.
Is it covered by warranty in Canada?
Yes. It is covered by MOZA's manufacturer warranty, with local support from Canada Toyz in Markham. Contact us at info@canadatoyz.com or +1 289-818-8441.
Browse more MOZA wheels, wheelbases and pedals in our sim racing collection.
