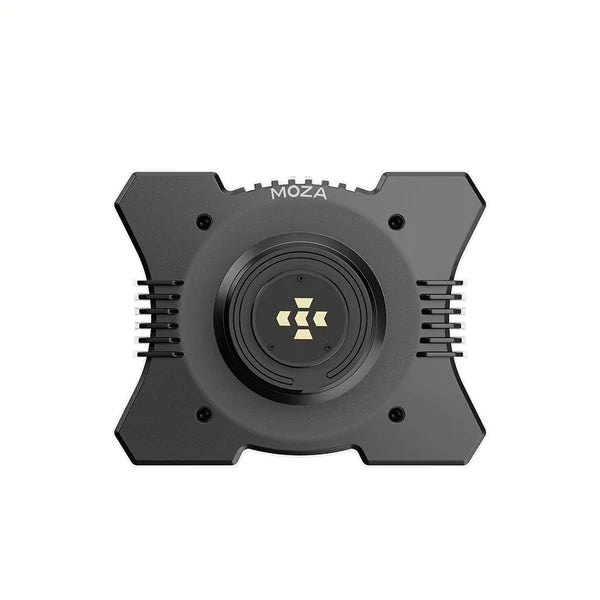

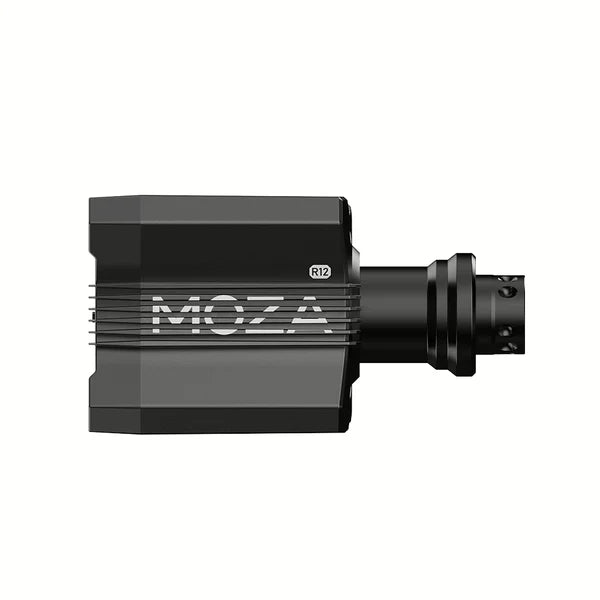

MOZA R12 V2 12 Nm direct drive wheelbase

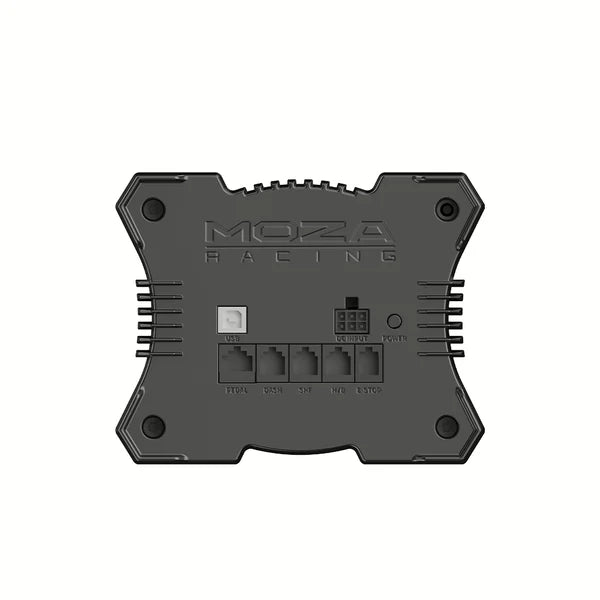

MOZA R12 V2 wheelbase ports

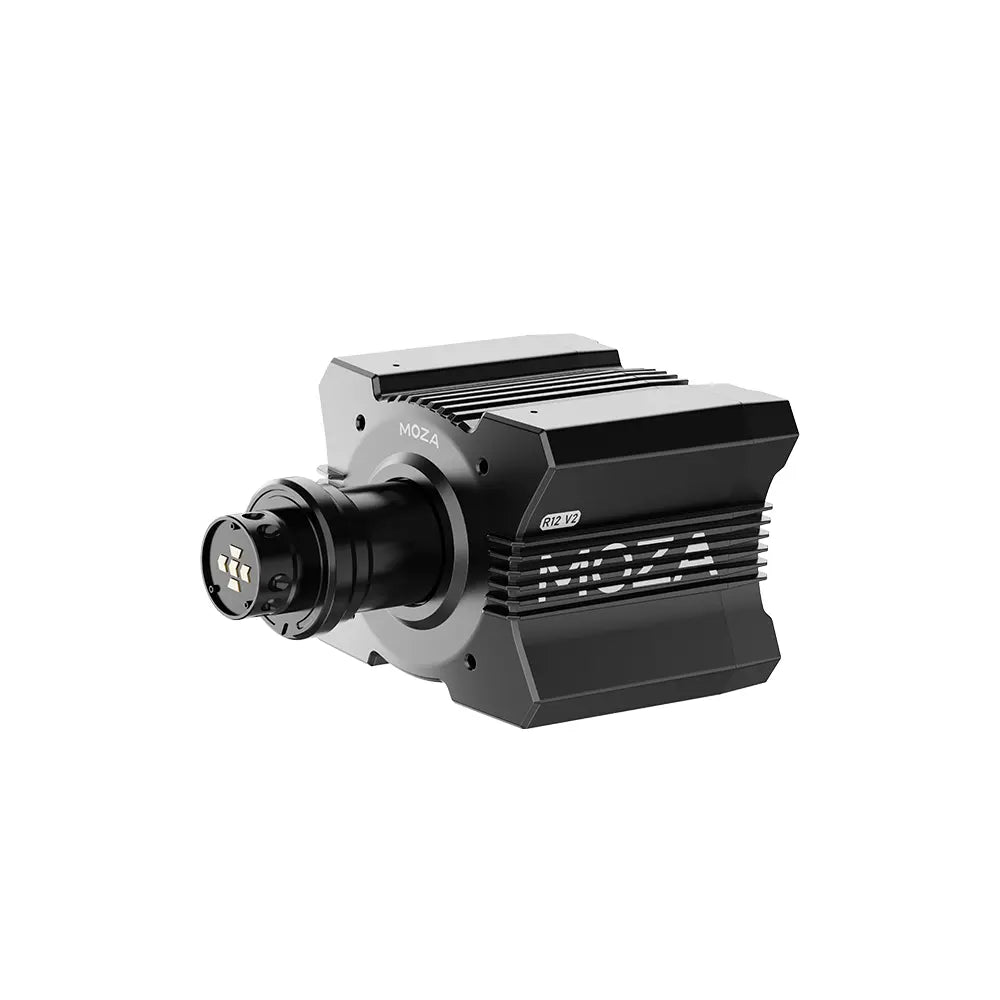

MOZA R12 V2 wheelbase with quick release
MOZA R12 V2 wheelbase mounting holes
MOZA R12 V2 wheelbase video

MOZA R12 V2 Direct Drive Wheel Base

$649.00 $509.00

The MOZA R12 V2 is a 12 Nm direct-drive sim racing wheelbase for PC. It has a 21-bit magnetic encoder, 216 W peak power, up to 2700° rotation, iRacing 360 Hz...

People are viewing this right now

american expressapple paygoogle payjcbmasterpaypalshopify paysofortvisa
Description

The MOZA R12 V2 is a 12 Nm direct-drive sim racing wheelbase for PC. It has a 21-bit magnetic encoder, 216 W peak power, up to 2700° rotation, iRacing 360 Hz mode and an aluminum housing. This is the wheelbase only: add a MOZA steering wheel and pedals. Canada Toyz sells it in CAD and ships from Markham, Ontario.

Key Features

  • 12 Nm peak torque from a direct-drive servo motor, 216 W peak power.
  • 21-bit magnetic encoder for precise steering.
  • iRacing 360 Hz mode through MOZA Pit House.
  • 90 to 2700° rotation and 1000 Hz USB refresh.
  • Ports for pedals, dash, shifter, handbrake and emergency stop.
  • Aviation-grade aluminum housing and MOZA quick release.

What's in the Box

  • MOZA R12 V2 wheelbase
  • Power adapter
  • USB cable
  • Toolkit
  • User manual and warranty card
  • MOZA stickers

Not included: a steering wheel, pedals or table clamp. Popular pairings: the KS or CS V2P wheel and SRP2 or CRP2 pedals. The MOZA Table Clamp is sold separately.

Choosing a MOZA Wheelbase

Wheelbase Peak torque Encoder Price at Canada Toyz
MOZA R9 V3 9 Nm 21-bit $419.00
MOZA R12 V2 (this page) 12 Nm 21-bit $559.00
MOZA R16 Ultra 16 Nm 21-bit $729.00
MOZA R21 Ultra 21 Nm 21-bit $969.00

Who It's For

  • Best for: PC racers moving up from an entry-level wheel who want strong, detailed force feedback.
  • Xbox: MOZA lists the R12 V2 as a PC wheelbase. For Xbox, MOZA pairs its licensed ESX wheel with the R3 Racing Bundle for Xbox & PC.
  • Want even more: the R16 Ultra (16 Nm).

Technical Specifications

  • Drive: Direct drive servo
  • Peak torque: 12 Nm
  • Peak power: 216 W
  • Encoder: 21-bit magnetic
  • Rotation: 90–2700°
  • USB refresh: 1000 Hz
  • Power: 110–220 V AC to 36 V DC
  • Dimensions: 225.87 × 156.68 × 123.99 mm
  • Housing: Aviation-grade aluminum alloy, black
  • Ports: Power, USB, pedals, dash, shifter, handbrake, E-stop
  • Mounting: 4-hole bottom mount; table clamp, side mount and E-stop optional
  • Software: MOZA Pit House

Compatibility

  • Wheels: all MOZA steering wheels with the MOZA quick release.
  • Platform: PC (as listed by MOZA).

MOZA R12 V2 FAQ

Does the R12 V2 include a wheel and pedals?

No. It is the wheelbase only.

Can I mount the R12 V2 on a desk?

Yes, with the optional MOZA Table Clamp. It also bolts to a wheel stand or cockpit with 4 bottom holes.

Does it work on Xbox?

MOZA lists the R12 V2 as a PC wheelbase and does not list Xbox support for it. For Xbox, MOZA points to the R3 Racing Bundle for Xbox & PC with the ESX wheel. Contact us before ordering if you need Xbox.

R9 V3 or R12 V2?

The R12 V2 gives 12 Nm instead of 9 Nm, for stronger force feedback. Both have a 21-bit encoder.

What does "Back order" mean on this page?

Back order means the wheelbase is not in our Markham warehouse at the moment. You can still place the order. It is queued and ships when the next supplier shipment reaches Markham, typically in 2 to 4 weeks. Lead time depends on supplier stock and transit.

Where does Canada Toyz ship from?

From Markham, Ontario, to addresses across Canada. Prices are in CAD, and there is no customs paperwork, duty or brokerage fee at delivery. Orders over $300 CAD ship free. See our shipping policy for details.

Is it covered by warranty in Canada?

Yes. It is covered by MOZA's manufacturer warranty, with local support from Canada Toyz in Markham. Contact us at info@canadatoyz.com or +1 289-818-8441.
