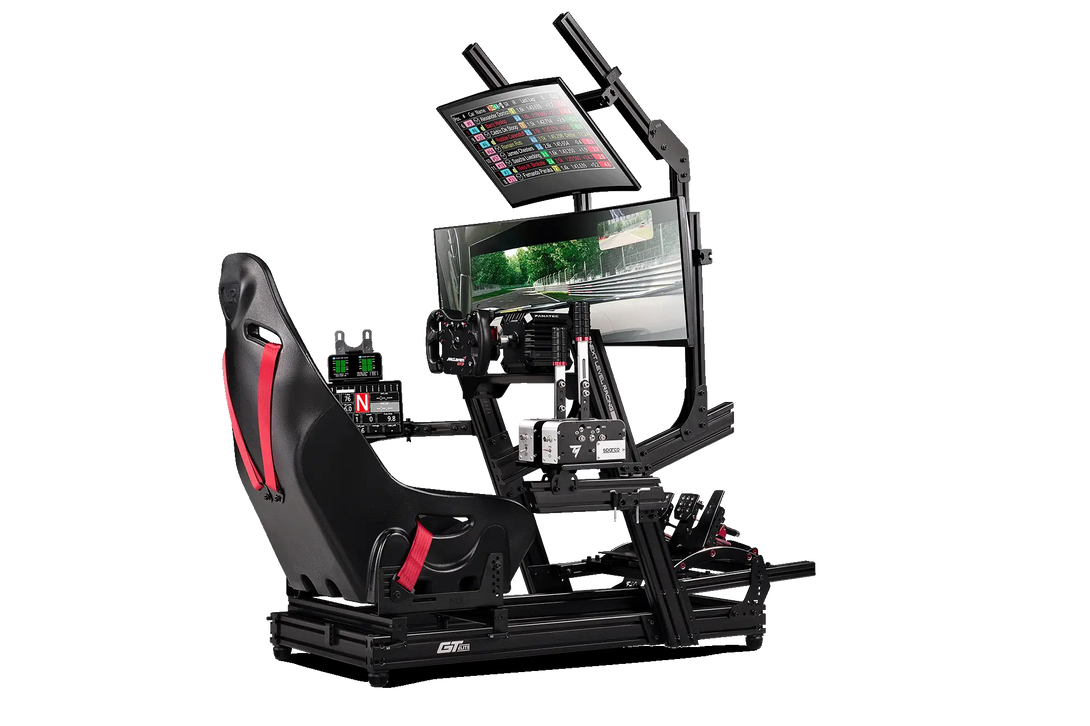

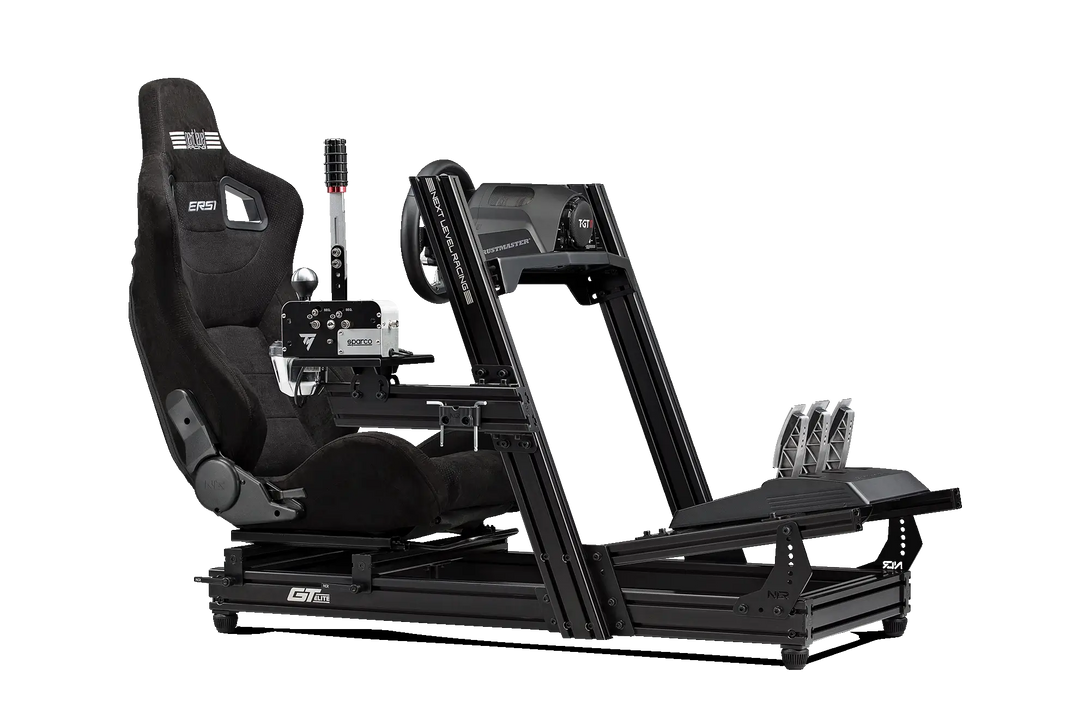

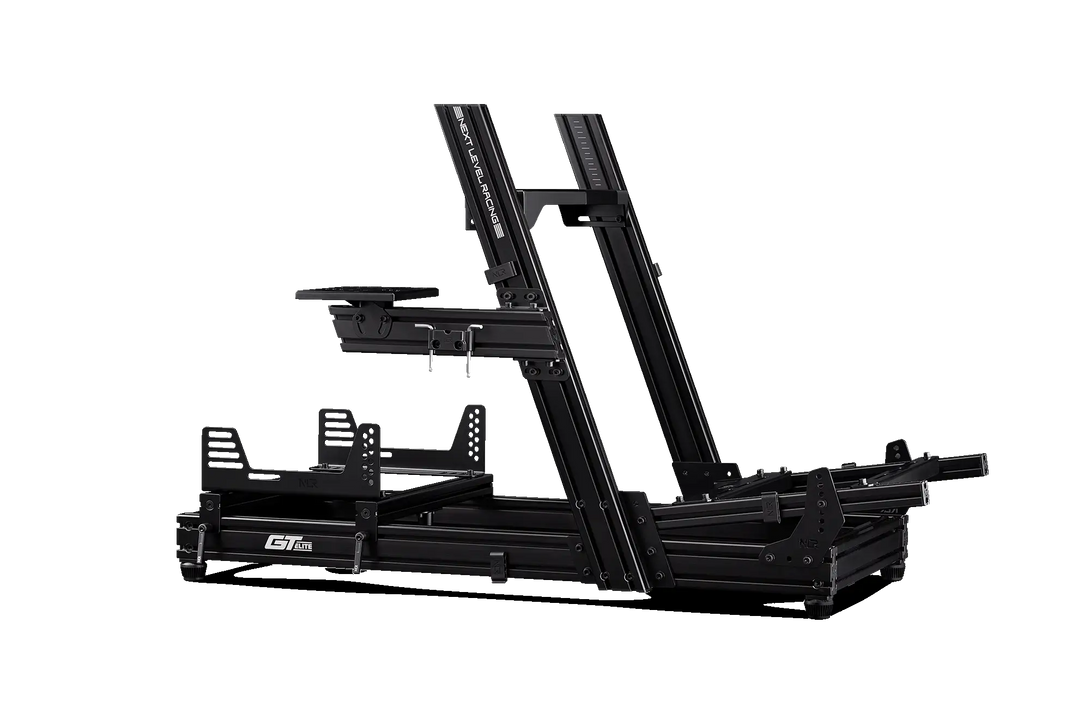

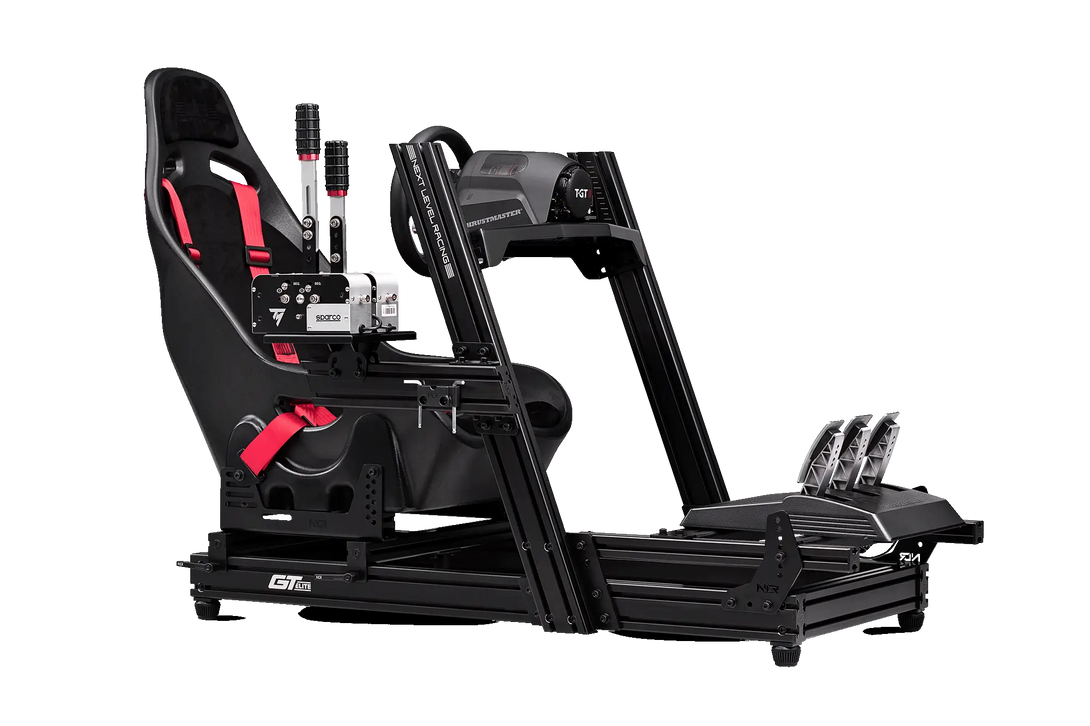

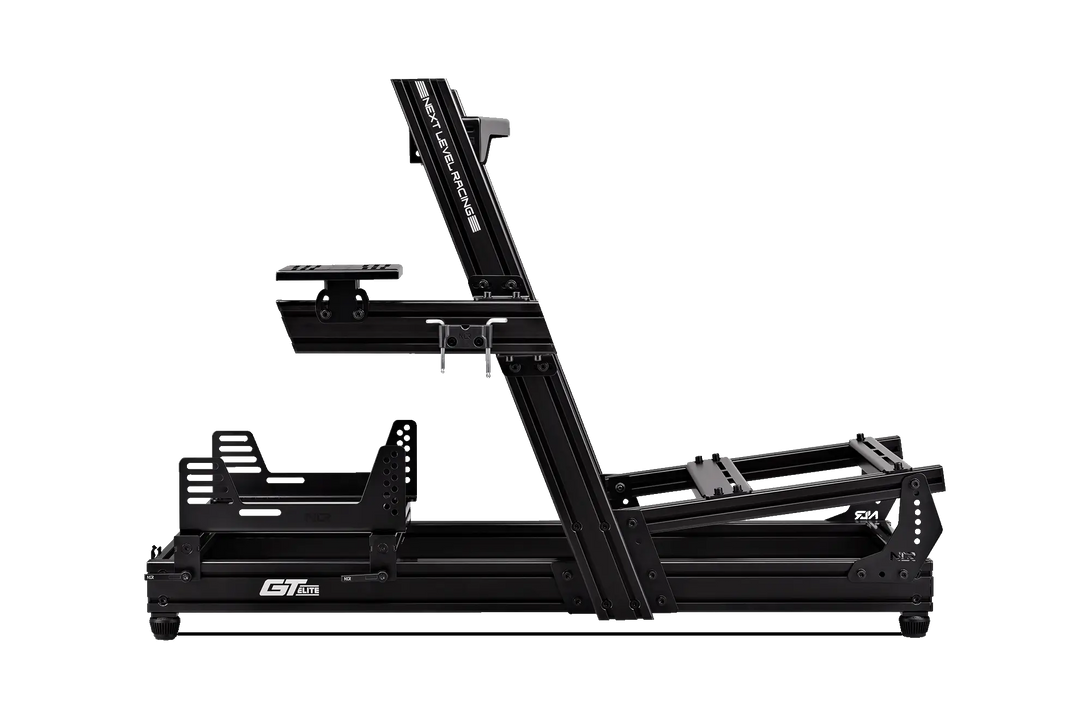

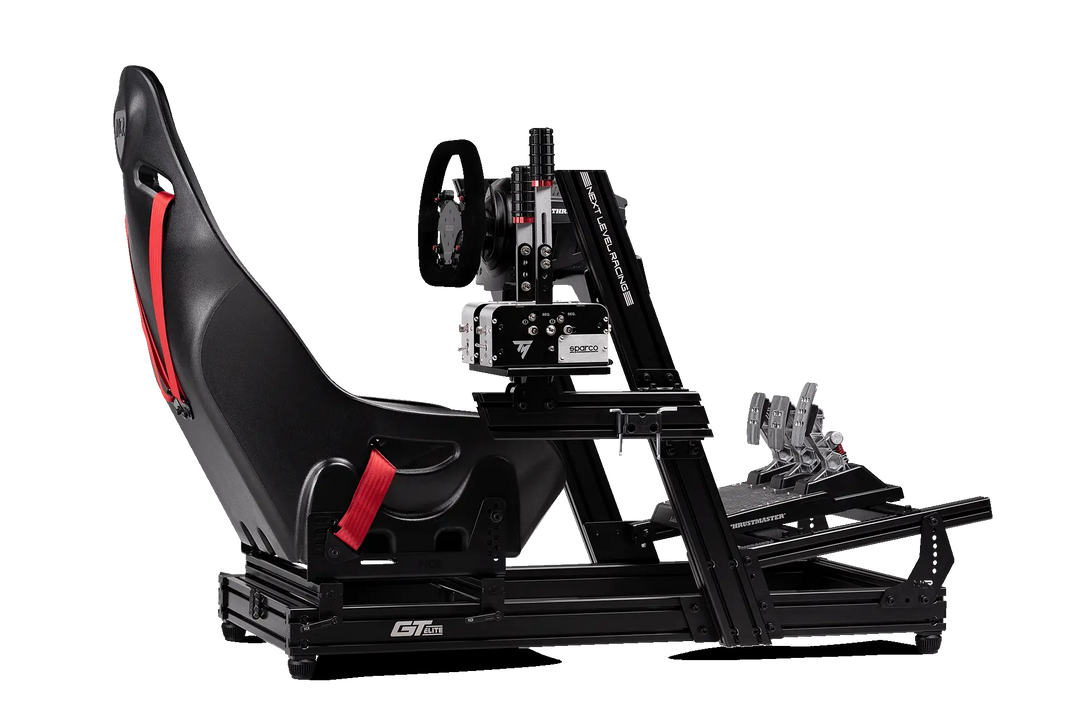

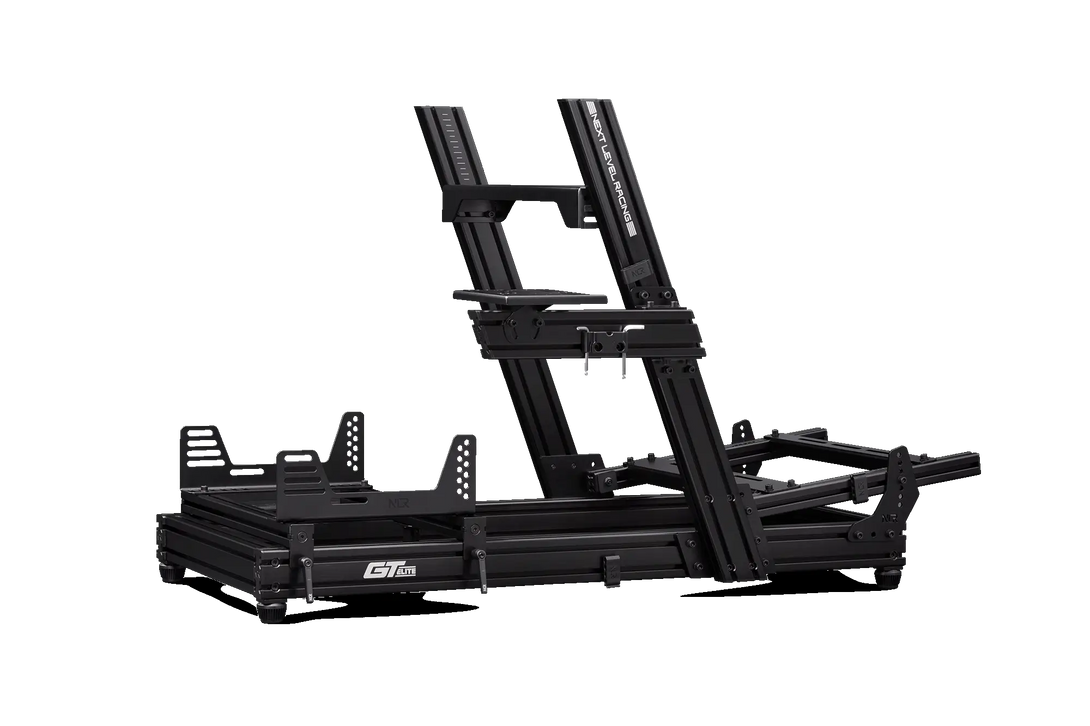

NEXT LEVEL RACING® GTElite Lite Wheel Plate Edition (NLR-E028)

The Next Level Racing GTElite Lite Wheel Plate Edition (NLR-E028) is NLR's best-value aluminum profile cockpit. It uses 40/40 and 40/80 profile with 8 mm carbon steel uprights and sandwich plate, a large wheel deck for bottom-mounted wheelbases, and flex-free seat and pedal sliders. It fits drivers 120–210 cm tall and up to 150 kg. Canada Toyz sells it in CAD and ships from Markham, Ontario.

Key Features

• 8 mm carbon steel upright mounting plates and sandwich plate, instead of corner brackets.
• Wheel deck equivalent to 14.3 mm steel; pedal deck equivalent to 10.84 mm steel.
• Taller uprights for more leg clearance.

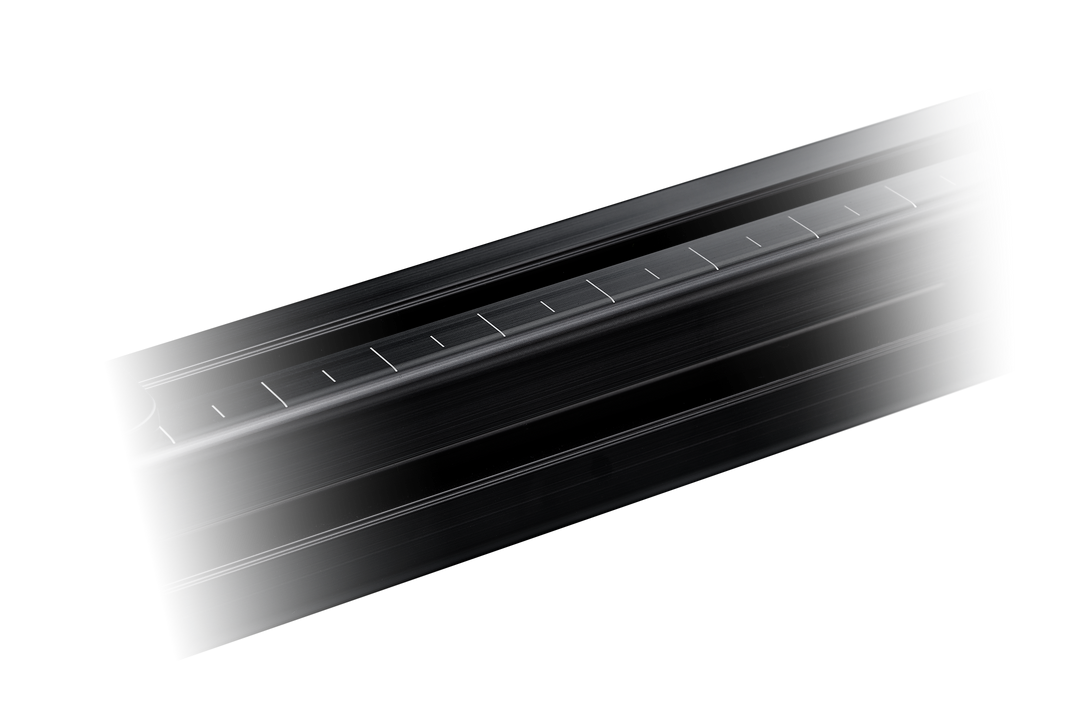

• Flex-free seat slider with ratchets and a pedal slider with laser line guides.
• Upgradable to Formula or Hybrid positions and NLR motion, with kits sold separately.

What's in the Box

• ButtKicker Gamer 2 adaptor
• Height-adjustable feet
• 6 cable clips
• Tool kit holder with magnetic spirit level
• NLR end caps

Listed by NLR as included extras. Not included: seat, seat brackets, wheel, pedals, shifter.

Next Level Racing GTElite Cockpits

Who It's For

• Best for: drivers moving from a wheel stand to their first aluminum profile cockpit.
• MOZA: NLR lists the R5 to R25 Ultra, such as the MOZA R9 V3.
• Want a shifter plate and seat brackets included: the GTElite Wheel Plate Edition.

Technical Specifications

• Part number: NLR-E028
• Material: 40/40, 40/80 aluminum extrusion
• Driver height: 120–210 cm (4 ft – 6 ft 9 in)
• Max weight: 150 kg (330 lb)
• Dimensions: 148 × 82.5 × 86.5 cm (L × W × H)
• Weight (NLR): 34.5 kg (76 lb)
• Box: 128.5 × 41 × 25.1 cm, 37.9 kg

Compatibility

• Wheelbases (NLR list): MOZA R5, R9, R12, R16, R21, R21 Ultra, R25 Ultra; Fanatec DD1/DD2 Podium and CSL DD; Simagic Alpha, Alpha Mini, M10, Alpha Evo range; Thrustmaster T300, T300 RS, T500 RS, TS-PC, TS-XW, T-GT II; Logitech G29, G923, G Pro, RS50; AccuForce V1 and V2.
• Pedals (NLR list): Fanatec CSL Elite, CSL V3, ClubSport V3; MOZA CRP2 (may need extra M8 nuts); Heusinkveld Sprint and Ultimate (with baseplate); BJ pedals (with base plate); Logitech G25, G27, G29, Pro.
• Seats: ERS3, ERS4, ERS5, PRS1, PRS2, EFS; ES1 and ES2 need the Universal Seat Brackets.
• Motion: Motion Plus out of the box; Motion V3 with the Elite Motion Adaptor Upgrade Kit.
• Add-ons: Elite Shifter Add-On, monitor stands, keyboard and mouse tray, VR headset holder, floor mats, Lockable Castor Wheels.

GTElite Lite FAQ

GTElite Lite or GTElite Wheel Plate Edition?

Both are bottom-mount wheel plate cockpits. The GTElite Wheel Plate Edition includes seat brackets and a shifter and handbrake plate; with the Lite you add those separately.

Will it hold a MOZA R12?

Yes. NLR lists the MOZA R5, R9, R12, R16, R21, R21 Ultra and R25 Ultra.

Is a seat included?

No. Seats and the Universal Seat Brackets are sold separately.

Can I add motion?

Yes. Motion Plus works out of the box; Motion V3 needs the Elite Motion Adaptor Upgrade Kit.

What does "Back order" mean on this page?

Back order means the cockpit is not in our Markham warehouse at the moment. You can still place the order. It is queued and ships when the next supplier shipment reaches Markham, typically in 2 to 4 weeks. Lead time depends on supplier stock and transit.

Where does Canada Toyz ship from?

From Markham, Ontario, to addresses across Canada. Prices are in CAD, and there is no customs paperwork, duty or brokerage fee at delivery. Orders over $300 CAD ship free. See our shipping policy for details.

Is it covered by warranty in Canada?

Yes. It is covered by Next Level Racing's manufacturer warranty, with local support from Canada Toyz in Markham. Contact us at info@canadatoyz.com or +1 289-818-8441.
