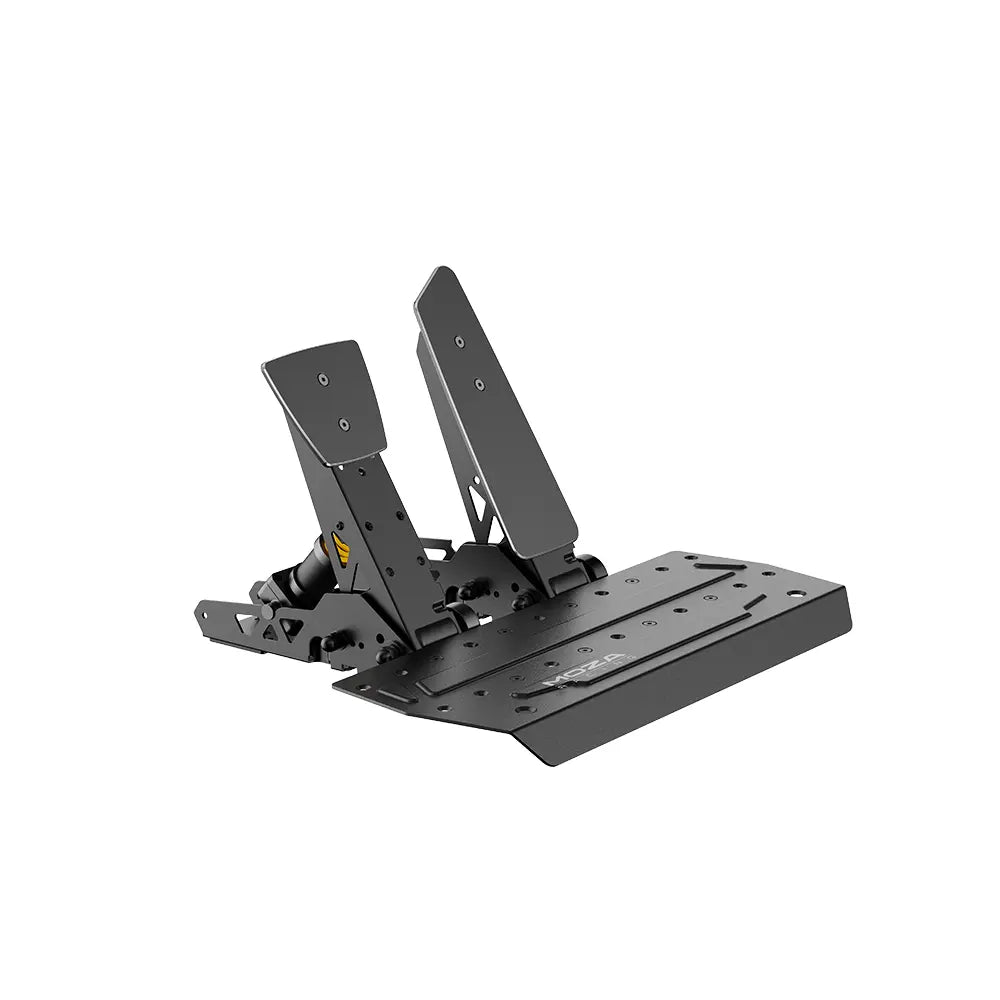

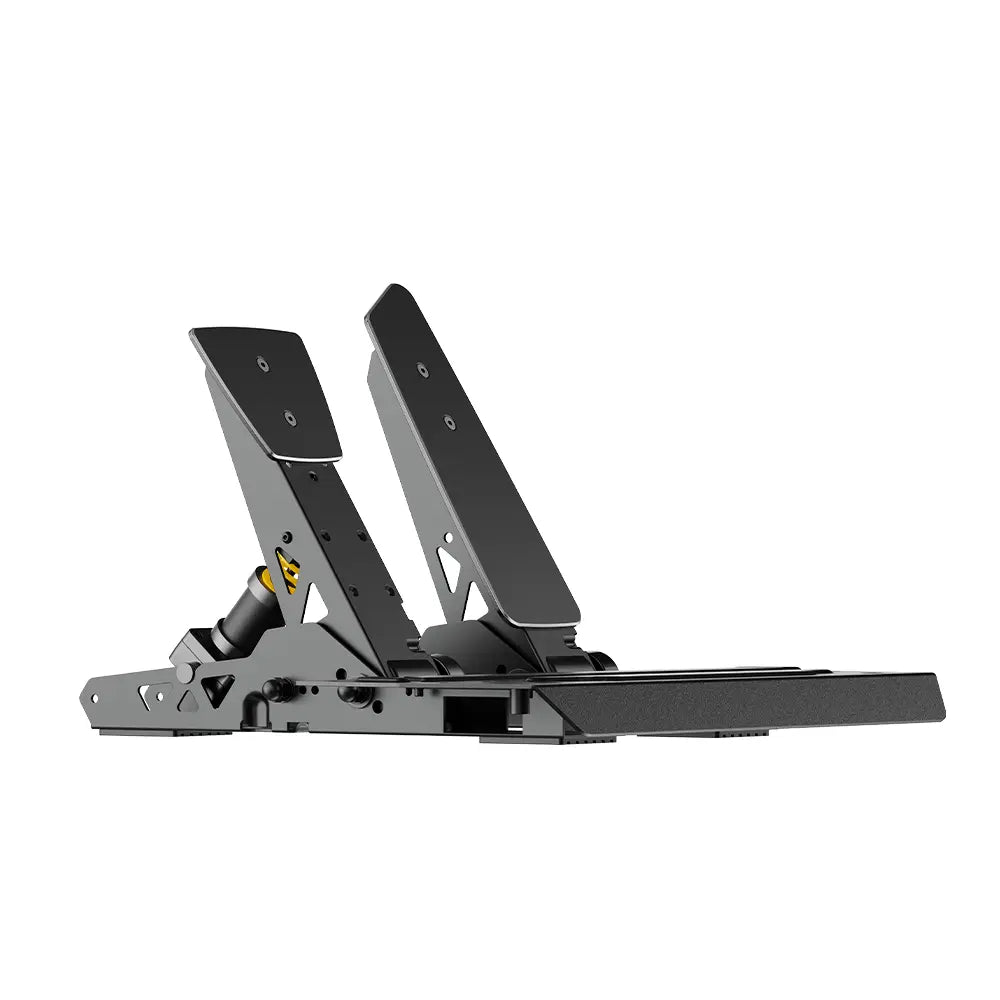

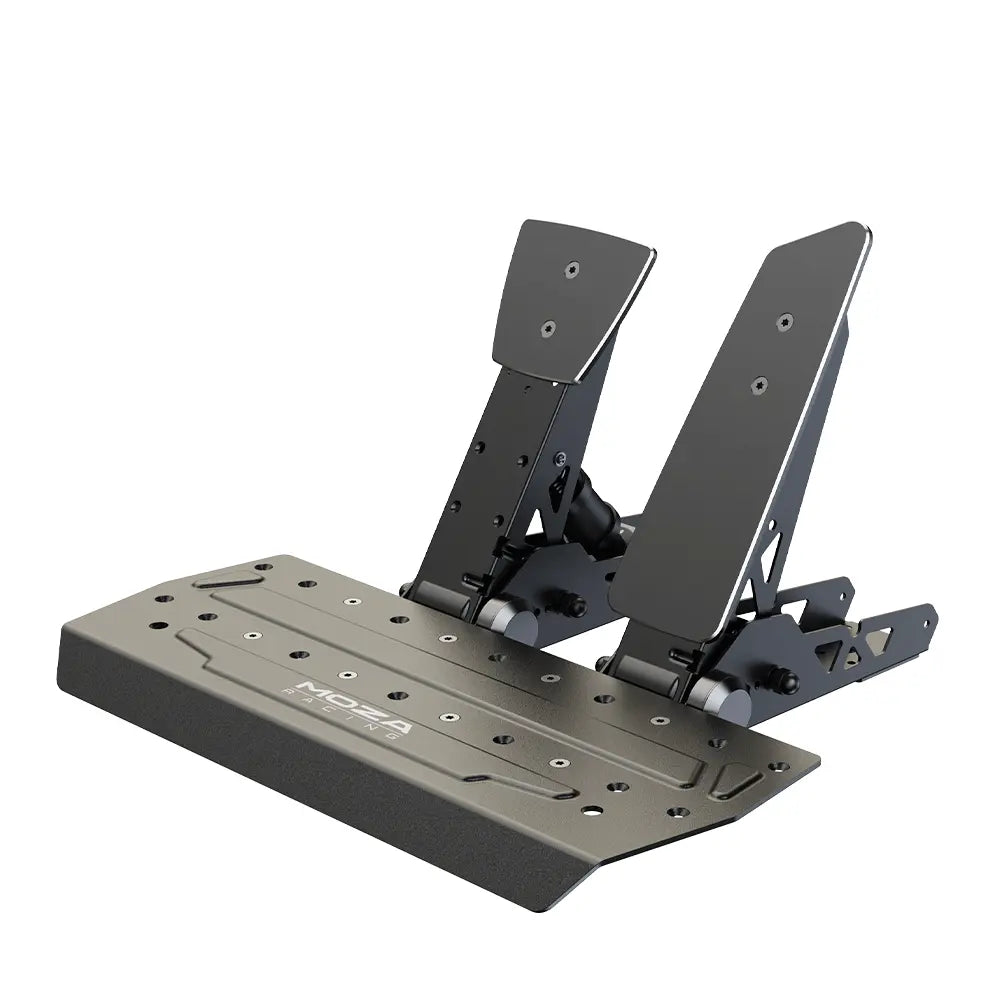

MOZA SR-P Pedals (Throttle+Brake)
The MOZA SR-P Pedals are a two-pedal throttle and brake set in high-strength steel. The brake uses a load cell plus angle sensor rated to 100 kg; the throttle uses a...
Pairs well with
The MOZA SR-P Pedals are a two-pedal throttle and brake set in high-strength steel. The brake uses a load cell plus angle sensor rated to 100 kg; the throttle uses a 15-bit angle sensor. Pedal spacing and plate height are adjustable, and the set connects to the PC by USB and is tuned in MOZA Pit House. A matching clutch is sold separately. Canada Toyz sells it in CAD and ships from Markham, Ontario.
Key Features
- Load cell brake (load cell + angle sensor), up to 100 kg.
- 15-bit angle sensors (32,768 PPR).
- Adjustable pedal spacing and plate height.
- Software travel adjustment and reverse in MOZA Pit House.
- High-strength steel pedals and plate.
- USB straight to the PC.
What's in the Box
- MOZA SR-P Pedals (no clutch) × 1
- USB Type-A to Type-B cable
- Toolkit
Clutch not included: add the SR-P Clutch Pedal.
Who It's For
- Best for: PC racers moving up to a load cell brake on a budget.
- Want stronger pedals: the SRP2 or CRP2 Load Cell Pedals.
- Not for: the SR-P Lite clutch or SR-P Lite Performance Kit; they do not fit this set.
Technical Specifications
- Pedals: Throttle and brake
- Brake sensor: Load cell + angle sensor
- Max brake capacity: 100 kg
- Throttle sensor: Angle sensor
- Angle sensor resolution: 15-bit (32,768 PPR)
- Material: High-strength steel
- Connection: USB
- Size: 410 × 310 × 170 mm
- Weight: 4.3 kg
Compatibility

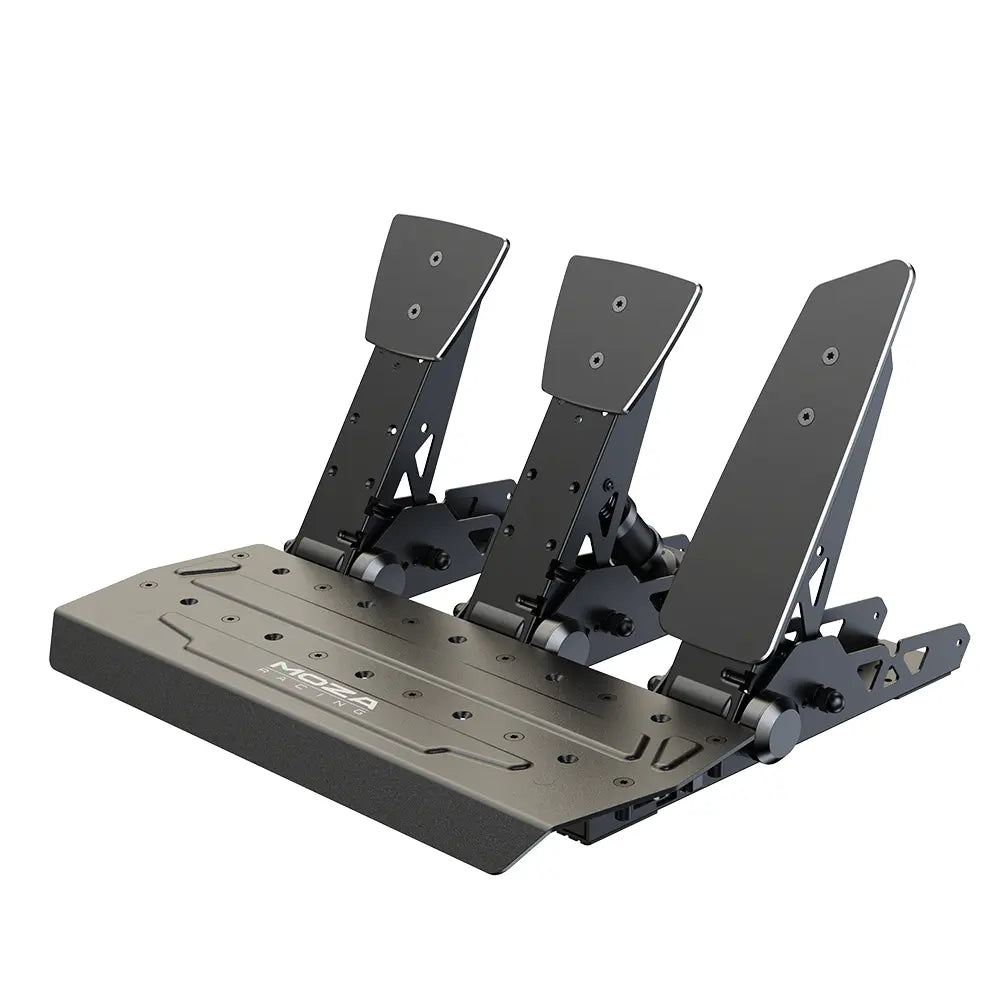

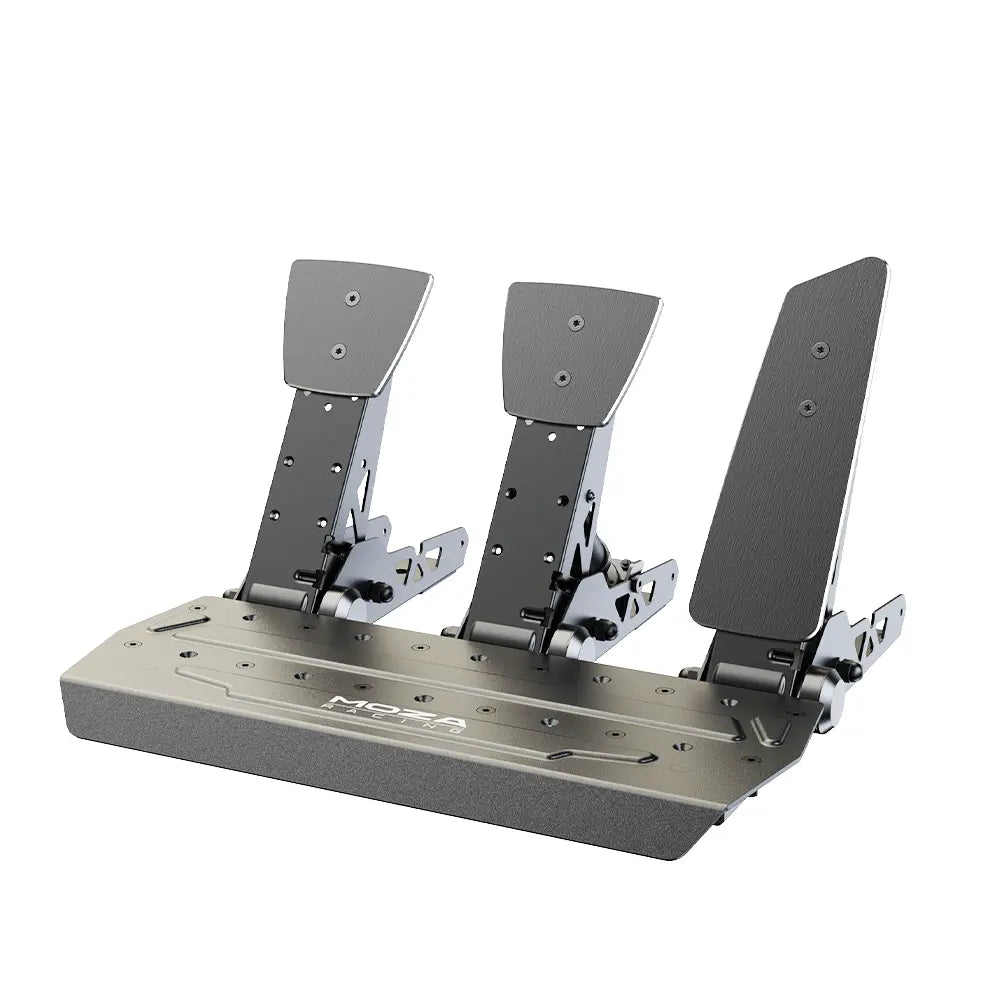

- Clutch: MOZA SR-P Clutch Pedal.
- Not compatible: SR-P Lite Clutch Pedal and SR-P Lite Brake Pedal Performance Kit.
- Platform: PC, configured in MOZA Pit House.
SR-P Pedals FAQ
Is the SR-P brake a load cell?
Yes. It uses a load cell plus an angle sensor, rated to 100 kg.
Does it come with a clutch?
No. Add the SR-P Clutch Pedal. The SR-P Lite clutch does not fit.
Does it need a wheelbase?
No. It connects to the PC by USB.
What does "Back order" mean on this page?
Back order means the pedal set is not in our Markham warehouse at the moment. You can still place the order. It is queued and ships when the next supplier shipment reaches Markham, typically in 2 to 4 weeks. Lead time depends on supplier stock and transit.
Where does Canada Toyz ship from?
From Markham, Ontario, to addresses across Canada. Prices are in CAD, and there is no customs paperwork, duty or brokerage fee at delivery. Orders over $300 CAD ship free. See our shipping policy for details.
Is it covered by warranty in Canada?
Yes. It is covered by MOZA's manufacturer warranty, with local support from Canada Toyz in Markham. Contact us at info@canadatoyz.com or +1 289-818-8441.
