MOZA R5 Racing Bundle for PC

The MOZA R5 Racing Bundle is a complete direct-drive sim racing set for PC. It includes the 5.5 Nm R5 wheelbase, the 11-inch ES steering wheel, SR-P Lite throttle and brake pedals and a table clamp, so you can race from a desk without a cockpit. Canada Toyz sells it in CAD and ships from Markham, Ontario.

Key Features

• 5.5 Nm direct drive wheelbase with a 15-bit encoder, up to 2700° rotation and 1000 Hz USB refresh.
• iRacing 360 Hz mode and MOZA NexGen force feedback, tuned in MOZA Pit House or the MOZA app.
• ES steering wheel: 11 inch, microfiber leather, aluminum frame, 22 buttons and 10 rev LEDs with telemetry.
• SR-P Lite pedals: high-strength steel, Hall sensors, adjustable spacing and pedal height.
• Desk ready: table clamp included, plus 4 bottom mounting holes for a wheel stand or cockpit.
• Preset driving modes for GT, Formula, Drift and Rally.

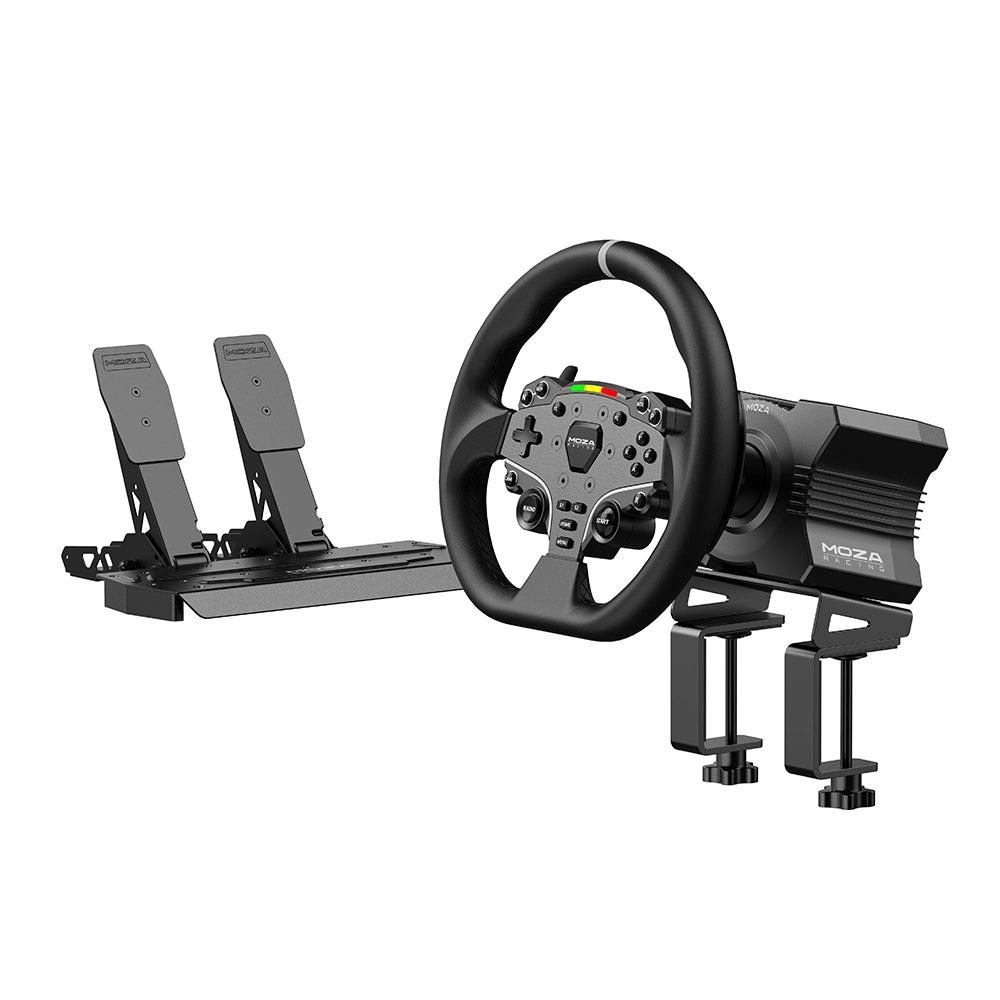

What's in the Box

• MOZA R5 direct drive wheelbase × 1
• MOZA ES steering wheel × 1
• MOZA SR-P Lite pedals (no clutch) × 1
• Table clamp
• Power adapter, power cord and USB cable
• Toolkit, user manual and warranty card

Not included: a clutch. Add the MOZA SR-P Lite Clutch Pedal for a three-pedal set.

Choosing a MOZA Racing Bundle

Who It's For

• Best for: PC racers buying their first direct-drive wheel, or moving up from a gear or belt wheel.
• Want the newer generation: the MOZA R5 Pro Bundle has 6 Nm, a 21-bit encoder and SRP Lite2 pedals.
• Xbox: this bundle is PC only. See the MOZA R3 Bundle for Xbox & PC.

Technical Specifications

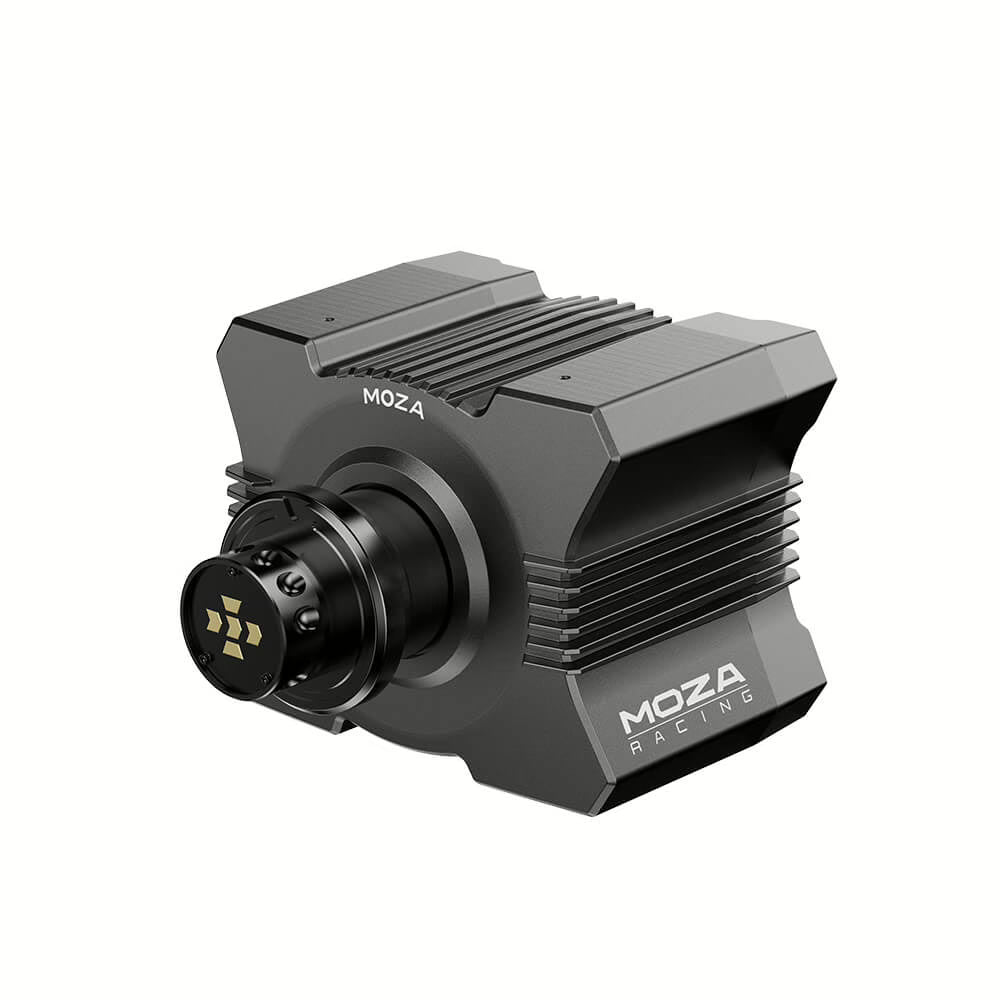

R5 Wheelbase

• Drive: Direct drive
• Peak torque: 5.5 Nm
• Encoder: 15-bit
• Max rotation: 2700°
• USB refresh: 1000 Hz
• Housing: Aviation-grade aluminum alloy
• Power: 110–220 V AC to 12 V DC
• Mounting: 4 bottom holes, desk clamp
• Quick release: MOZA quick release
• Emergency stop: Optional

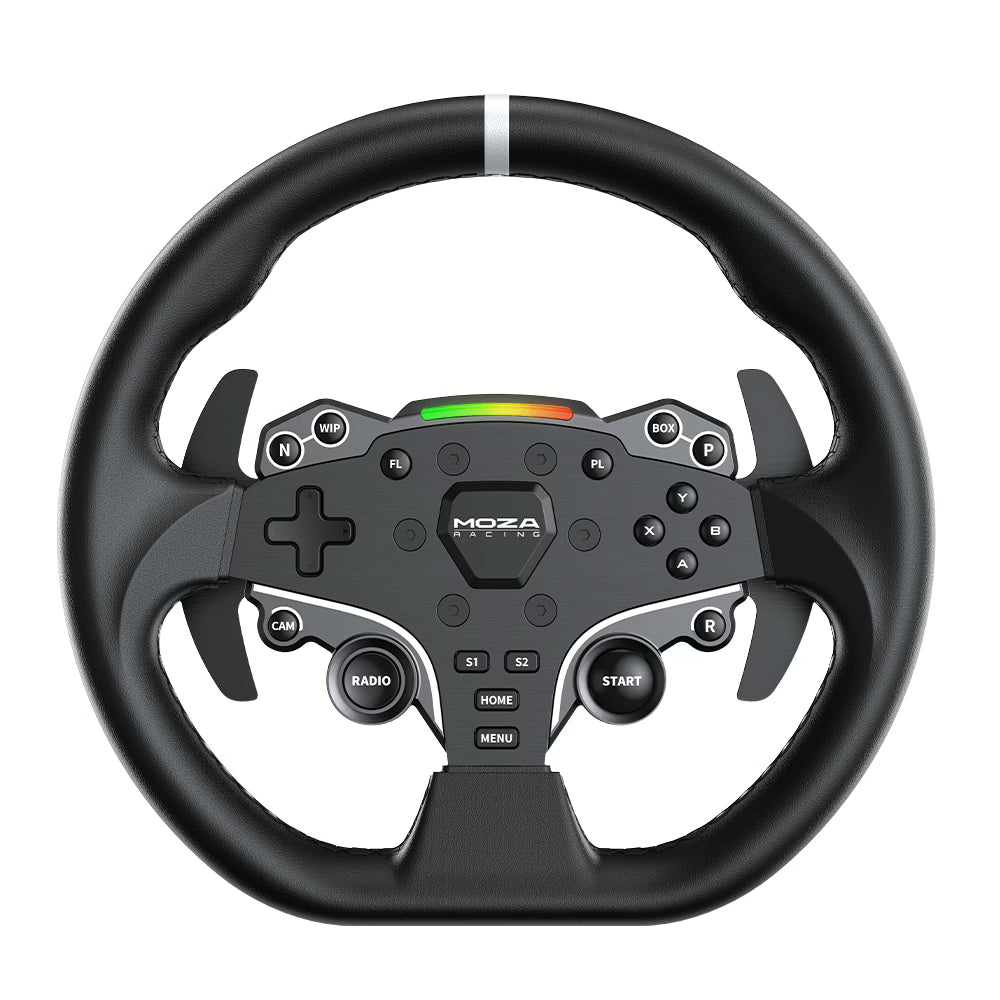

ES Steering Wheel

• Size: 11 inch
• Rim: Microfiber leather
• Frame and plates: Aluminum alloy
• Buttons: 22
• Rev lights: 10 LEDs, telemetry supported

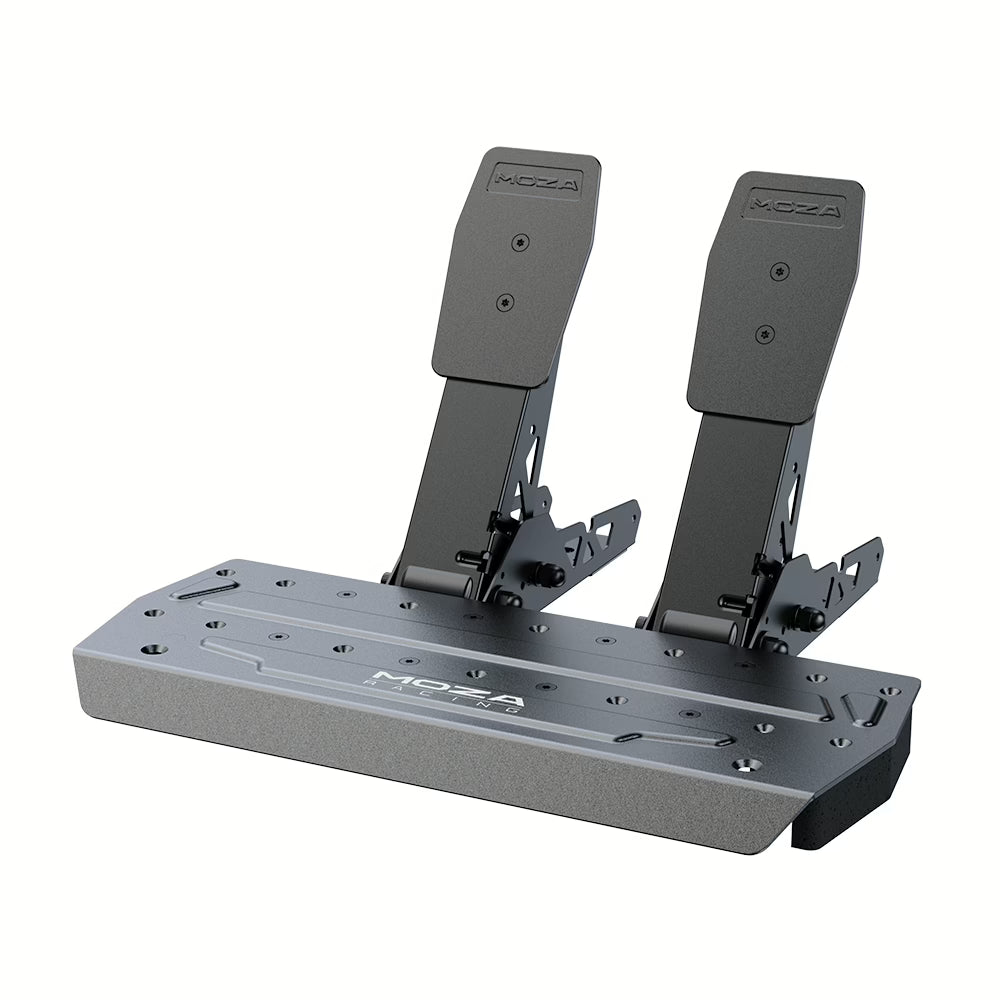

SR-P Lite Pedals

• Pedals: Throttle and brake
• Sensor: Hall sensor
• Material: High-strength steel
• Adjustments: Spacing, pedal height, input curve and reversal

Compatibility

• Platform: Windows PC, plug and play.
• Upgrades: the R5 base works with other MOZA wheels, load cell pedals such as the SRP2, shifters such as the HGP and the HBP handbrake.

MOZA R5 Bundle FAQ

Does the MOZA R5 Bundle work on Xbox or PlayStation?

No. It is a PC bundle. For Xbox, choose the MOZA R3 Bundle for Xbox & PC.

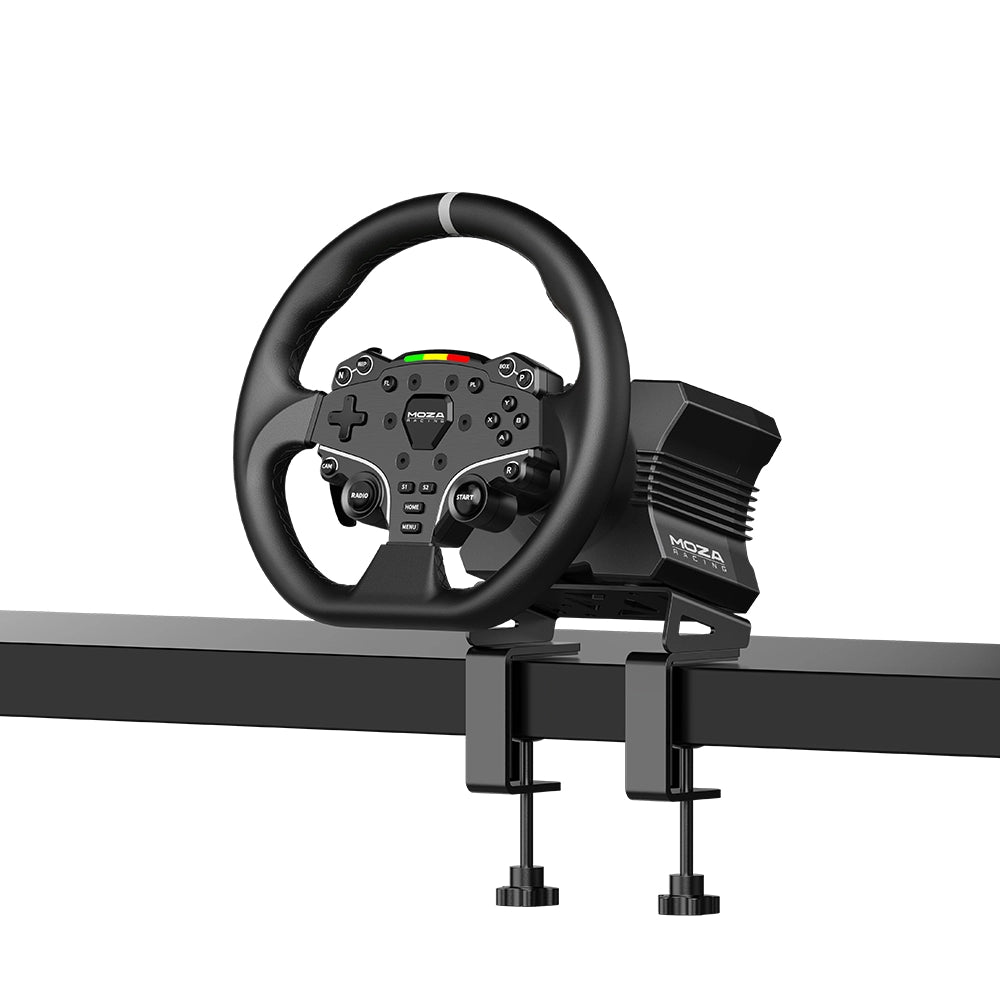

Can I use the R5 on a desk?

Yes. A table clamp is included, so it clamps to a desk. It also has 4 bottom mounting holes for a wheel stand or cockpit.

Does it come with a clutch pedal?

No. The SR-P Lite pedals are throttle and brake. Add the SR-P Lite Clutch Pedal for three pedals.

What is the difference between the R5 and R5 Pro bundles?

The R5 Pro has 6 Nm instead of 5.5 Nm, a 21-bit encoder instead of 15-bit, the ES Lite wheel and SRP Lite2 pedals.

Can I upgrade later?

Yes. The R5 base works with other MOZA wheels, pedals, shifters and handbrakes.

What does "Back order" mean on this page?

Back order means the bundle is not in our Markham warehouse at the moment. You can still place the order. It is queued and ships when the next supplier shipment reaches Markham, typically in 2 to 4 weeks. Lead time depends on supplier stock and transit.

Where does Canada Toyz ship from?

From Markham, Ontario, to addresses across Canada. Prices are in CAD, and there is no customs paperwork, duty or brokerage fee at delivery. Orders over $300 CAD ship free. See our shipping policy for details.

Is it covered by warranty in Canada?

Yes. It is covered by MOZA's manufacturer warranty, with local support from Canada Toyz in Markham. Contact us at info@canadatoyz.com or +1 289-818-8441.
