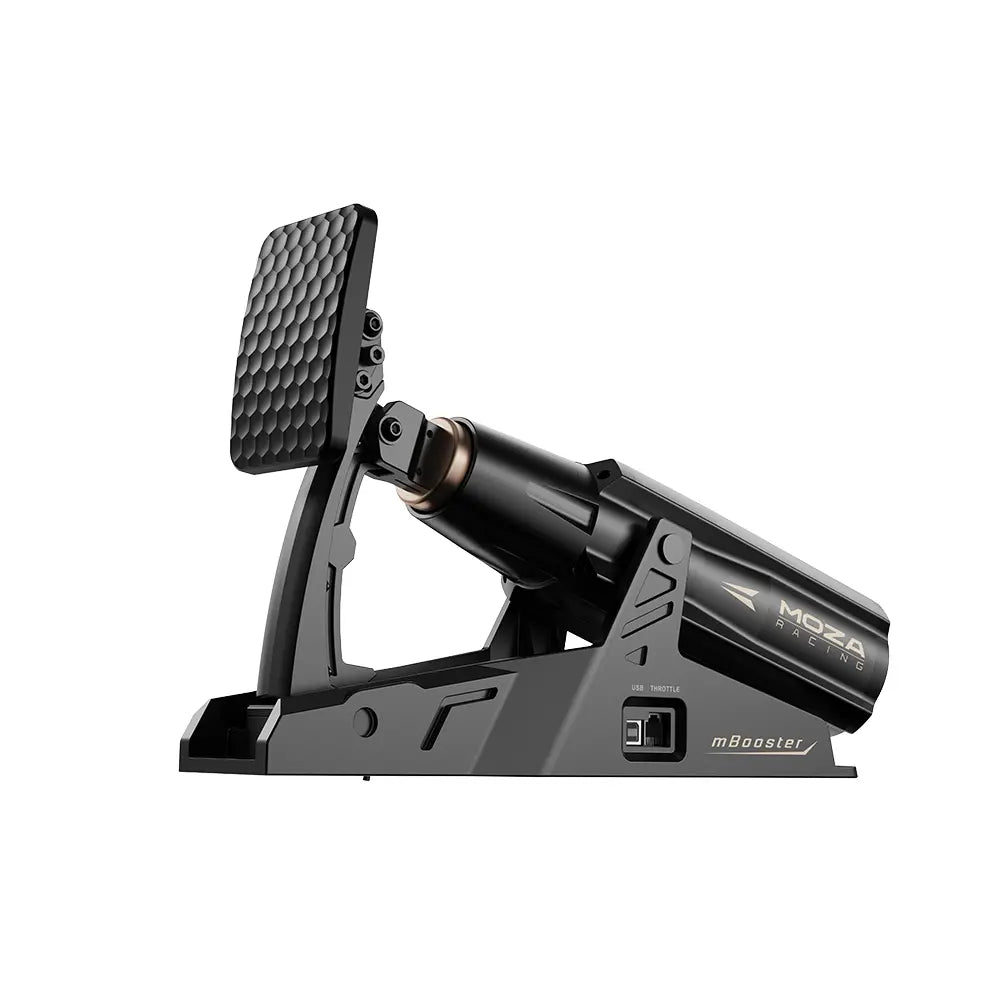

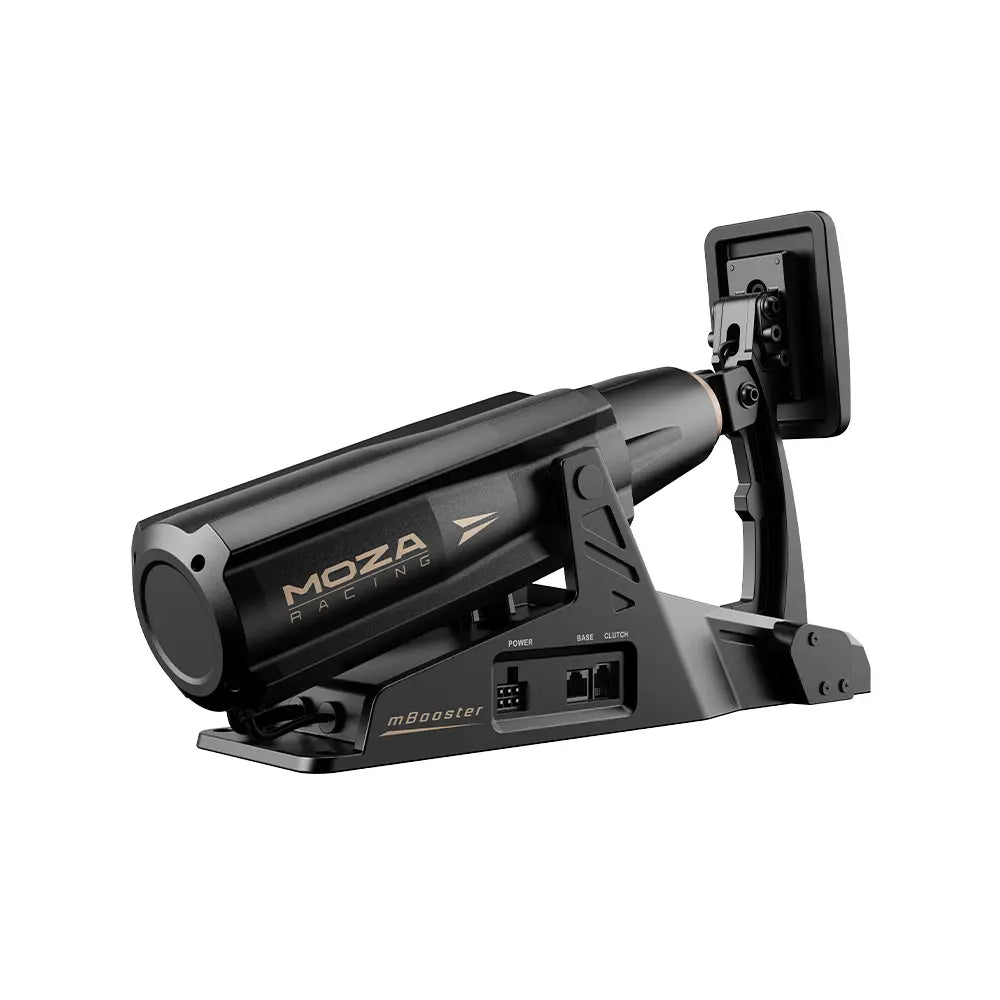

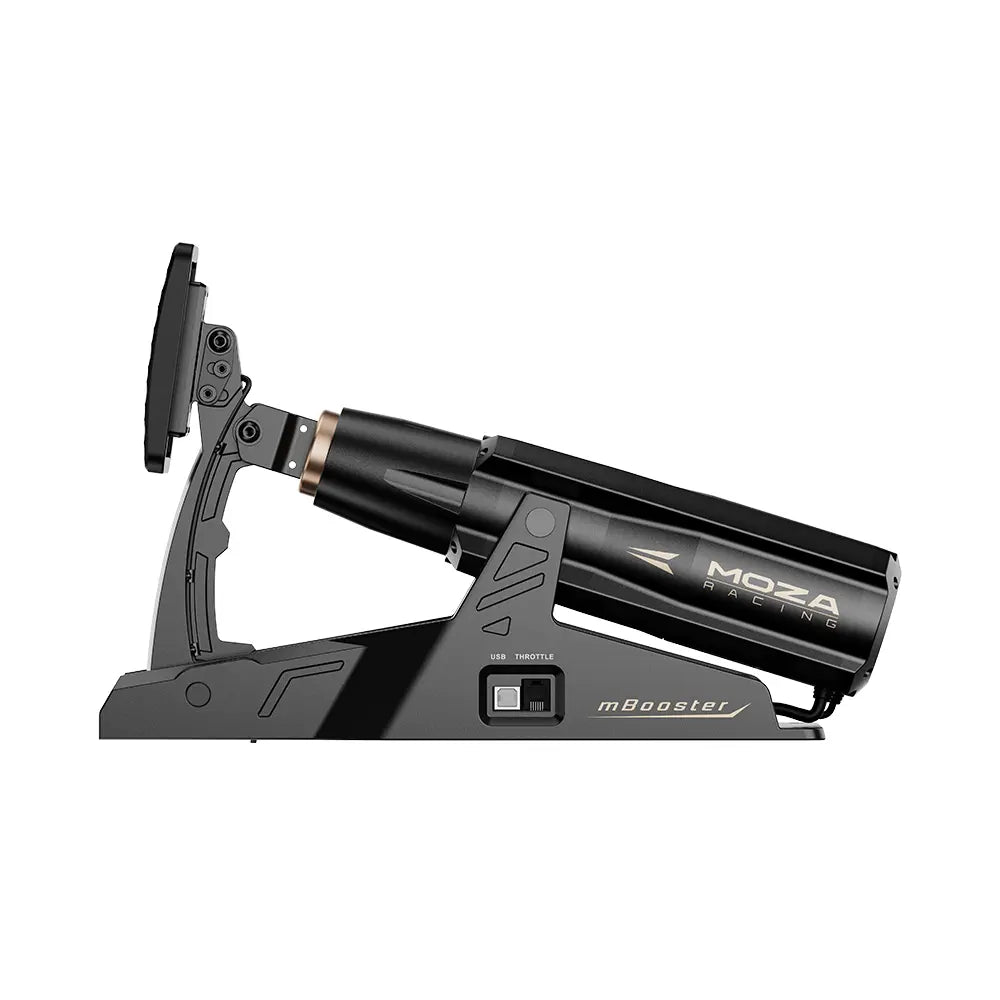

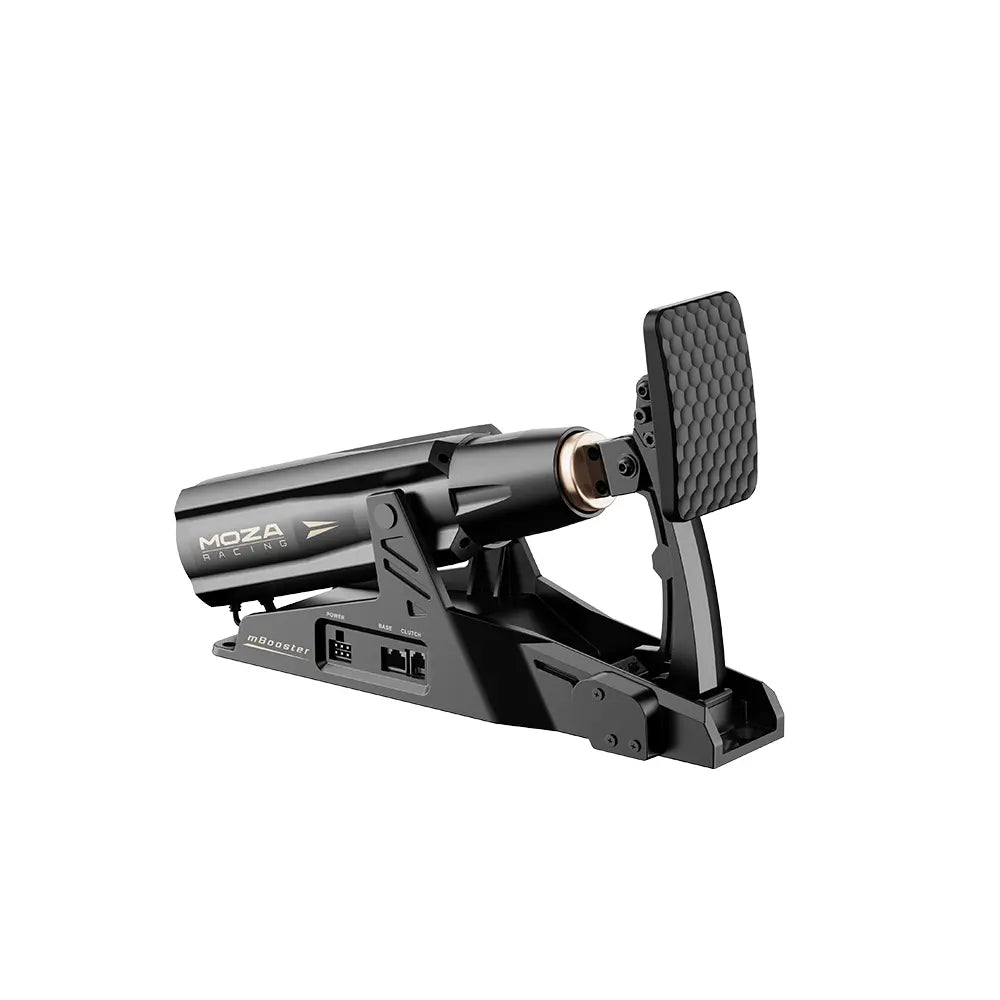

MOZA mBooster Active Pedal

The MOZA mBooster Active Pedal is a single active force feedback pedal for PC sim racing. A servo motor and ball screw with dual 200 kg load cells simulate ABS, traction control, gear shifts and G-force through your foot. Use it as a brake, clutch or throttle alongside your CRP2 pedals. Canada Toyz sells it in CAD and ships from Markham, Ontario.

Key Features

• Active force feedback from a high-torque servo motor and ball screw: ABS lock-up, traction control, engine vibration, G-force and road surface effects.
• Dual 200 kg load cells with an angle sensor for accurate braking.
• One-click pedal feel: change rebound, travel, damping and friction in MOZA Pit House with no mechanical adjustment.
• Switch modes: set the mBooster as brake, clutch or throttle.
• Quiet: rated at 44 dB.
• Works with CRP2 pedals, including a CRP2 clutch for a three-pedal setup.

What's in the Box

• mBooster Active Pedal × 1

CRP2 users need the MOZA mBooster Base Extension Plate for the best fit. For a complete set with throttle and plates, see the mBooster Active Pedal Set.

Who It's For

• Best for: sim racers with CRP2 pedals who want to add active brake feedback.
• Starting from scratch: the mBooster Active Pedal Set includes the throttle, plates and power supply.
• Platform: PC, with MOZA Pit House.

Technical Specifications

mBooster Active Pedal

• Body: Aluminum alloy
• Load cells: Dual, 0–200 kg
• Brake sensing: Load cell plus angle sensor
• Peak power: 270 W
• Input: 110–220 V AC to 48 V DC
• Travel adjustment: 0–25°
• Angle adjustment: 0–15°
• Noise: 44 dB
• Connection: USB to PC

MOZA mBooster Active Pedal FAQ

Is this one pedal or a set?

One pedal. For the active pedal plus a CRP2 throttle and plates, see the mBooster Active Pedal Set.

Does it work with my CRP2 pedals?

Yes. MOZA recommends the mBooster Base Extension Plate for mounting next to CRP2 pedals.

Can it be a clutch or throttle?

Yes. Switch it between brake, clutch and throttle in MOZA Pit House.

Do I need to adjust springs or elastomers?

No. Pedal feel is set in software, with no mechanical changes.

What does "Back order" mean on this page?

Back order means the pedal is not in our Markham warehouse at the moment. You can still place the order. It is queued and ships when the next supplier shipment reaches Markham, typically in 2 to 4 weeks. Lead time depends on supplier stock and transit.

Where does Canada Toyz ship from?

From Markham, Ontario, to addresses across Canada. Prices are in CAD, and there is no customs paperwork, duty or brokerage fee at delivery. Orders over $300 CAD ship free. See our shipping policy for details.

Is it covered by warranty in Canada?

Yes. It is covered by MOZA's manufacturer warranty, with local support from Canada Toyz in Markham. Contact us at info@canadatoyz.com or +1 289-818-8441.
