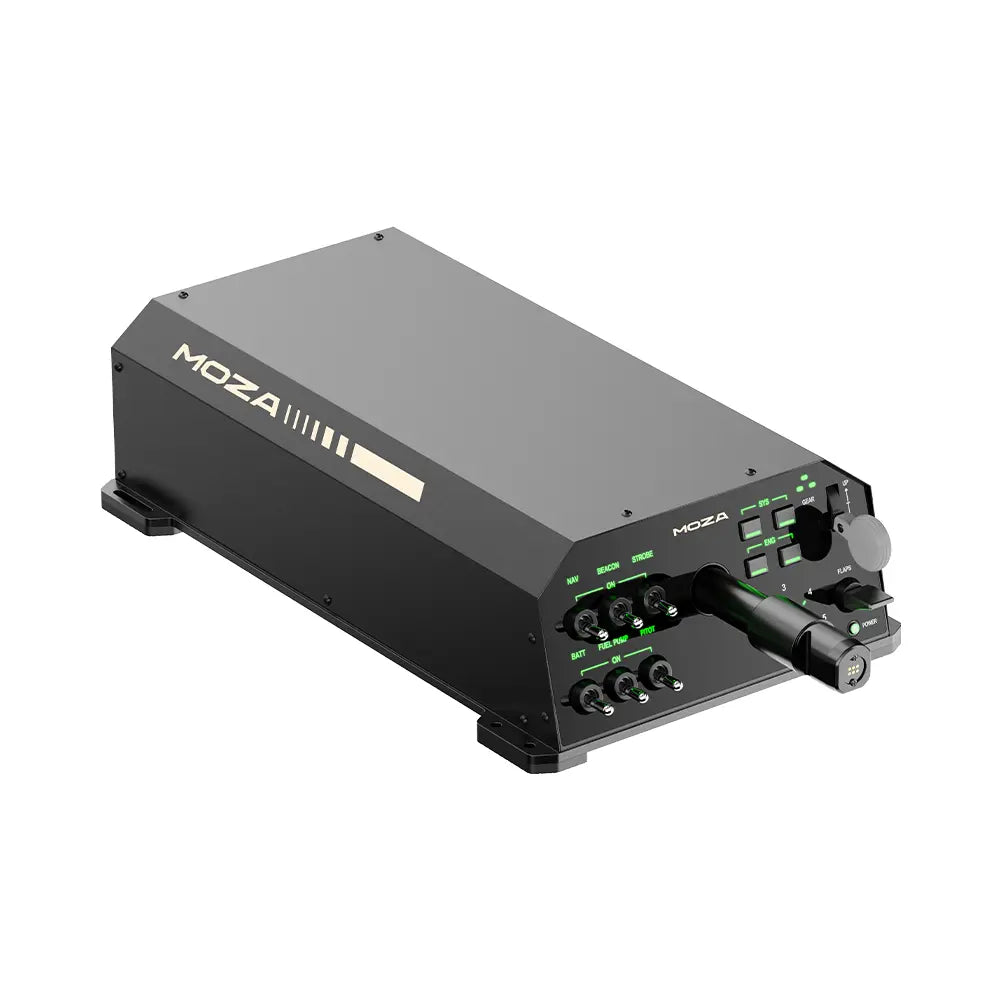

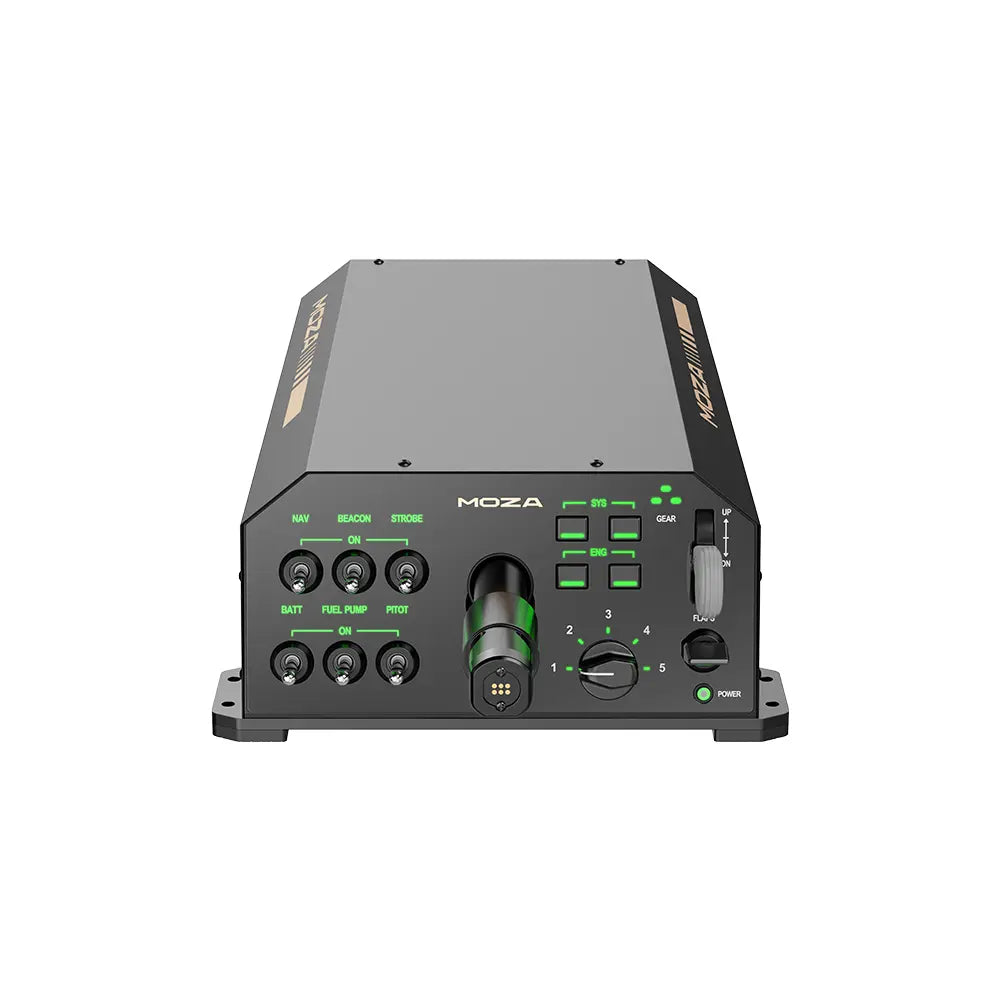

MOZA AY210 force feedback yoke base, front view

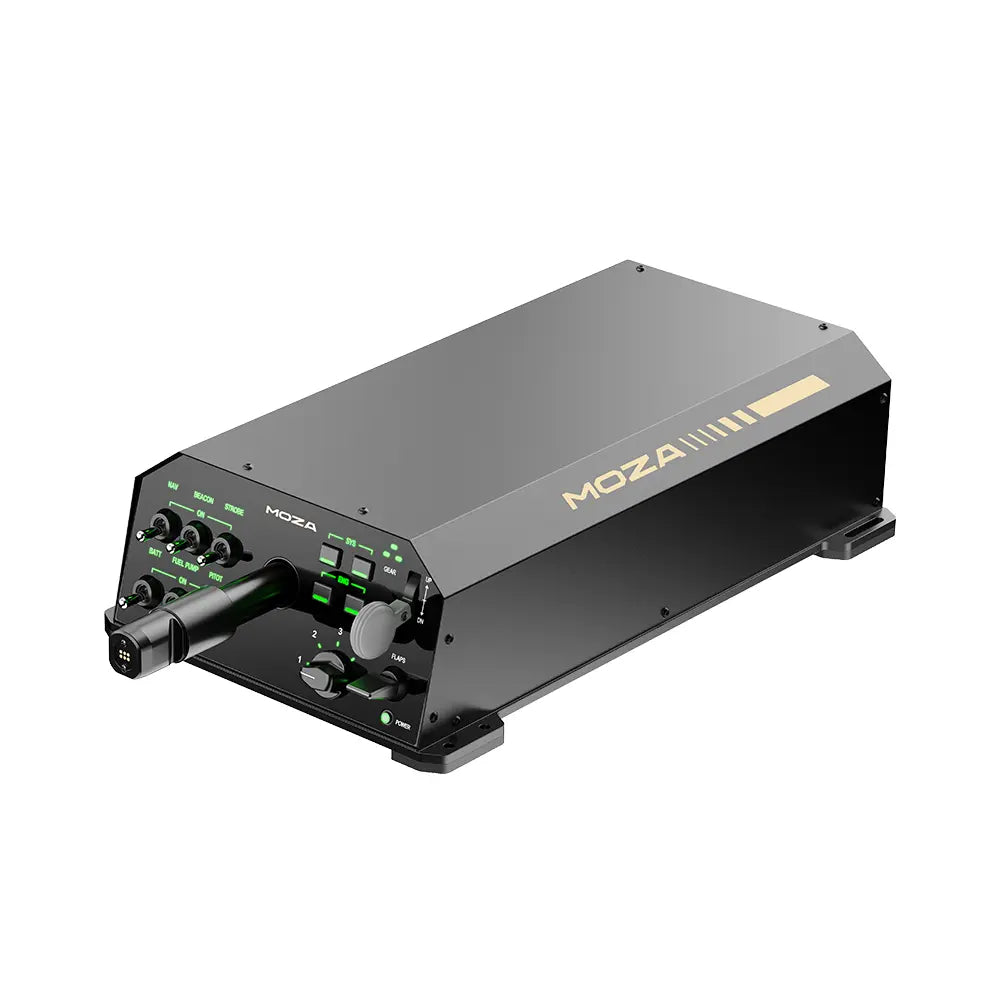

MOZA AY210 force feedback yoke base, front view side view
MOZA AY210 force feedback yoke base, side view

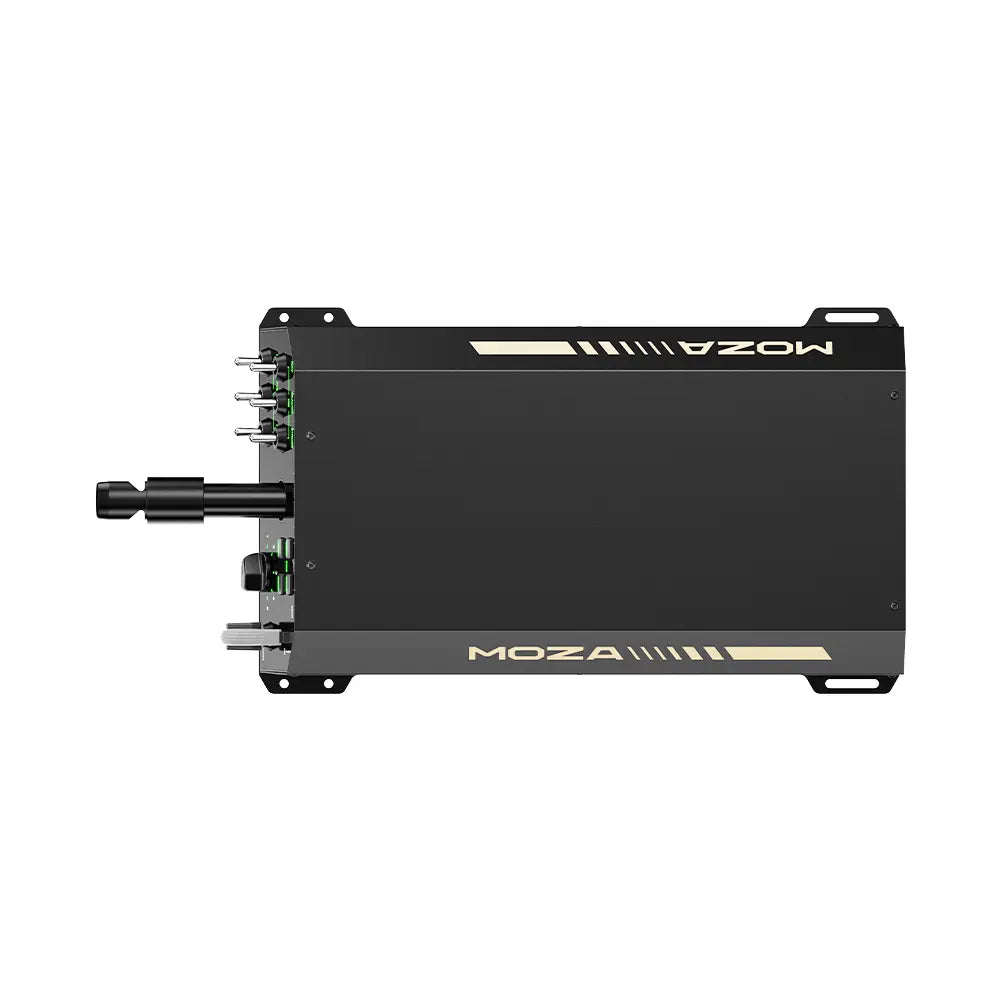

MOZA AY210 force feedback yoke base, top view

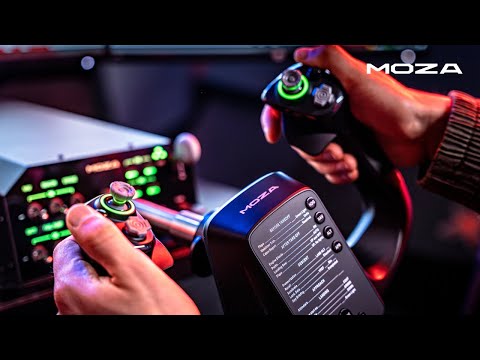

MOZA AY210 force feedback yoke base video

MOZA AY210 Force Feedback Yoke Base

$969.00 $929.00

The MOZA AY210 Yoke Base is a force feedback yoke base for PC flight simulators. Dual servo motors deliver 9 Nm of sustained roll torque and up to 210 N of...

People are viewing this right now

american expressapple paygoogle payjcbmasterpaypalshopify paysofortvisa
Description

The MOZA AY210 Yoke Base is a force feedback yoke base for PC flight simulators. Dual servo motors deliver 9 Nm of sustained roll torque and up to 210 N of pitch force over 150 mm of travel, in an aluminum and steel body. This is the base only: add a MOZA yoke handle. Canada Toyz sells it in CAD and ships from Markham, Ontario.

Key Features

  • 9 Nm sustained roll torque and up to 210 N push-pull pitch force from dual servo motors.
  • 150 mm pitch travel and ±90° roll (180° total).
  • Native force feedback with intelligent telemetry FFB, no plugins needed.
  • 15-bit magnetic encoder, 280 MHz processor and 1000 Hz USB refresh rate.
  • 13 customizable switches on the base, configured in MOZA Cockpit.
  • All-aluminum quick release for tool-free yoke swaps.
  • Ports for a throttle, rudder pedals and panels, so your MOZA flight gear runs through one base.

What's in the Box

  • MOZA AY210 Yoke Base × 1
  • Toolkit
  • User manual
  • Warranty card

Not included: a yoke handle or clamp. Add the MOZA MFY Yoke or MFY Pro Flight Yoke, and the MOZA Yoke Table Clamp for desk mounting.

Who It's For

Technical Specifications

  • Roll torque: 9 Nm sustained
  • Pitch force: Up to 210 N push-pull
  • Pitch travel: 150 mm
  • Roll range: ±90°
  • Motors: Dual servo
  • Encoder: 15-bit magnetic
  • Processor: 280 MHz
  • USB refresh rate: 1000 Hz
  • Power: 216 W; 110–220 V AC to 36 V DC
  • Housing: Aluminum alloy, reinforced steel chassis
  • Dimensions: 243 × 403 × 112 mm (without mounting shaft)
  • Weight: 8.0 kg
  • Mounting: Desktop clamp or suspended clamp (both optional), or cockpit mount
  • E-stop switch: Optional
  • Software: MOZA Cockpit
  • Platform: PC

Compatibility

  • Flight sims: Microsoft Flight Simulator 2024 and 2020, X-Plane 12 and DCS, with native force feedback.
  • Yokes: MOZA yoke series, such as the MFY and MFY Pro.

MOZA AY210 Yoke Base FAQ

Does the AY210 include a yoke?

No. It is the base only. Add the MOZA MFY Yoke or MFY Pro Flight Yoke.

Which flight sims does it support?

MOZA lists native force feedback support for MSFS 2024 and 2020, X-Plane 12 and DCS, plus other major titles.

Can I mount it on a desk?

Yes, with an optional desktop or suspended clamp, such as the MOZA Yoke Table Clamp. It can also mount in a cockpit.

How is it different from an entry-level yoke?

More torque and pitch force, longer pitch travel, real force feedback and an all-metal body.

Does it work on Xbox?

No. MOZA lists the AY210 for PC.

What does "Back order" mean on this page?

Back order means the yoke base is not in our Markham warehouse at the moment. You can still place the order. It is queued and ships when the next supplier shipment reaches Markham, typically in 2 to 4 weeks. Lead time depends on supplier stock and transit.

Where does Canada Toyz ship from?

From Markham, Ontario, to addresses across Canada. Prices are in CAD, and there is no customs paperwork, duty or brokerage fee at delivery. Orders over $300 CAD ship free. See our shipping policy for details.

Is it covered by warranty in Canada?

Yes. It is covered by MOZA's manufacturer warranty, with local support from Canada Toyz in Markham. Contact us at info@canadatoyz.com or +1 289-818-8441.
